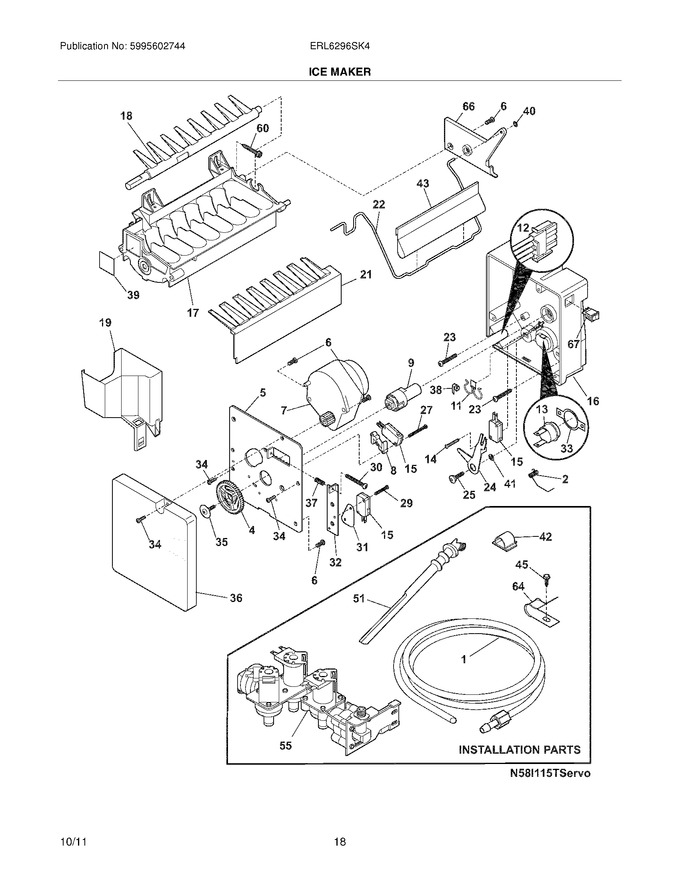

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
2	5304459922		Spring,shut-off Arm		Appelez-nous	-
4	5304458380		Gear				$ 32.77
5	5304459907		Plate-mounting		Appelez-nous	-
6	5304459913		Screw		Appelez-nous	-
8	5304458388		Spacer-hold Switch		Appelez-nous	-
9	5304456662		Cam		Appelez-nous	-
12	5304458379		Harness-wiring				$ 112.69
13	5304456665		Thermostat,ice Maker				$ 134.23
14	5304459918		Screw,plask ,4x14x3/4		Appelez-nous	-
16	5304459920		Housing-control		Appelez-nous	-
18	5304458377		Ejector-ice				$ 38.75
19	5304459904		Cup-water Inlet		Appelez-nous	-
21	5304458390		Ice Stripper		Appelez-nous	-
22	5304459903		Shut-off Arm		Appelez-nous	-
23	5304459917		Screw		Appelez-nous	-
24	5304459915		Lever Arm		Appelez-nous	-
25	5304459916		Screw		Appelez-nous	-
27	5304459910		Screw,4-40 X 1.000 ,hold Switch Mtg ,(2)		Appelez-nous	-
29	5304459914		Screw		Appelez-nous	-
30	5304459912		Screw		Appelez-nous	-
31	5304458381		Insulator		Appelez-nous	-
32	5304456681		Plate-valve Switch		Appelez-nous	-
33	5304458403		Retainer-thermostat		Appelez-nous	-
34	5304459911		Screw		Appelez-nous	-
35	5304459908		Screw		Appelez-nous	-
36	5304458376		Cover-ice Maker				$ 58.31
37	5304456682		Spring,timing Adjust		Appelez-nous	-
38	5304458398		Clip		Appelez-nous	-
39	5304458399		Conductor-heat		Appelez-nous	-
40	5304458401		Clip-retainer		Appelez-nous	-
41	5304459921		Washer		Appelez-nous	-
42	218515403		Clip-grille				$ 29.06
43	241720601		Extension				$ 20.56
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
51	241796406		Tube-water Fill,extension   (Replaces: 241796402)				$ 19.85
55	242252902		Valve-water,triple Solenoid ,220   (Replaces: 240536202)				$ 131.96
60	5304455651		Screw,hex Washer Head ,8-15a X 0.500				$ 14.41
64	5304455846		Clamp,.31 Id ,steel ,water Tube				$ 10.63
66	5304458374		Bracket-ice Maker		Appelez-nous	-
67	5304458392		Switch-on/off		Appelez-nous	-
F11	5304458400		Thermal Cutoff,ice Maker		Appelez-nous	-
F15	5304456667		Switch-micro,(3)				$ 92.53
F17	5304459905		Mold-ice Maker,with Heater		Appelez-nous	-
F7	5304459906		Motor-ice Maker Svo		Appelez-nous	-
NI	240363602		Screw-shoulder				$ 13.65
NI	240542901		Cap-water Valve				$ 18.95
NI	241944601		Harness-wiring,water Sole Vlv		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
NI	218976917		Tube-water Inlet,valve To Door				$ 62.47
NI	5304492753		Ice Maker,radius Cube ,220 V   (Replaces: 241709802)				$ 283.50
NI	5304456689		Washer,nylon				$ 77.26
NI	241583301		Deflector-air,ice Maker				$ 46.78
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5304441981		Bushing-ground		Appelez-nous	-
NI	5304441982		Connector,splice		Appelez-nous	-
NI	5304455692		Diode Assembly		Appelez-nous	-
NI	241522902		Harness-wiring,icmkr/container		Appelez-nous	-
NI	65801LF		Saddle-valve Kit   (Replaces: 5308000247)			Immediately	$ 8.27
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
