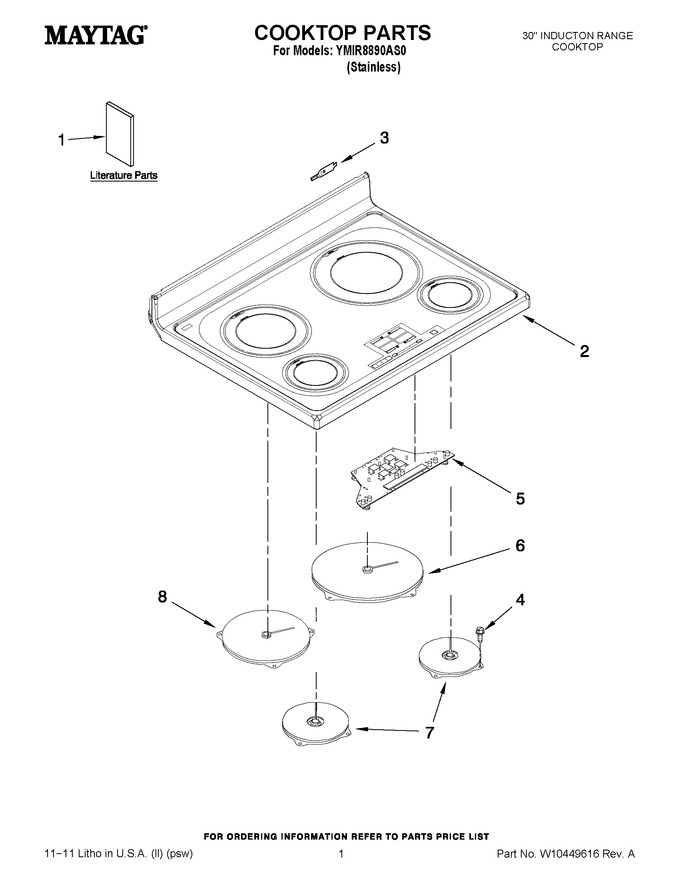

01 - Cooktop Parts
02 - Interior Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instruct, Install |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10392926 | Guide, Use & Care |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1 | W10441306 | Diagram, Wiring (english) |
|
- | |||||
| 1 | W10441307 | Diagram, Wiring (french) |
|
- | |||||
| 1 | W10392954 | Diagram, Wiring (english) |
|
- | |||||
| 1 | W10392955 | Diagram, Wiring (french) |
|
- | |||||
| 2 | W10400395 | Cooktop (stainless) |
|
- | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | WP3196557 | Screw, Element (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 5 | W10818314 | Board, Display Ui-g8 (Replaces: W10390744) |
|
$ 293.64 | |||||
| 6 | WPW10410579 | Hotplate (lr) (Replaces: W10410579) |
|
$ 231.72 | |||||
| 7 | WPW10410580 | Hotplate (lf & Rf) (Replaces: W10410580) |
|
$ 219.30 | |||||
| 8 | WPW10410578 | Hotplate (rr) (Replaces: W10410578) |
|
$ 277.41 |
