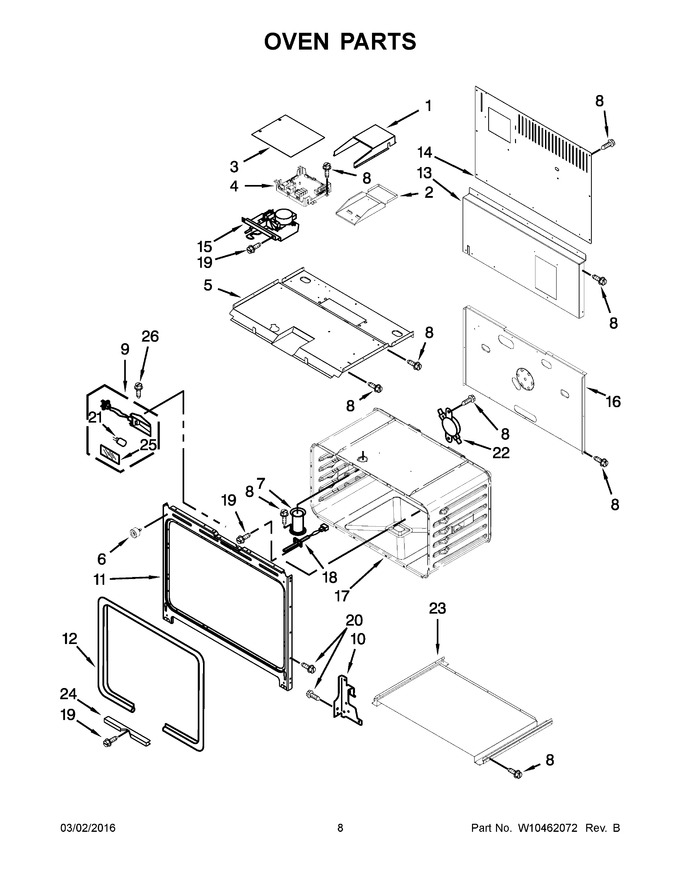

KDRS463VSS03 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10235557	Assembly, Drawer	Appelez-nous	-
2	W10249337	Support, Control	Appelez-nous	-
3	W10239444	Seal, Control	Appelez-nous	-
4	W10852104	Manager, Appliance (Replaces: W10825620)		Immediately	$ 376.25
5	W10267896	Top, Chassis	Appelez-nous	-
6	W10105790	Bumper & Screw			$ 6.35
7	W10288061	Tube, Vent			$ 99.38
8	WP90767	Screw (Replaces: 7101P426-60)		Immediately	$ 7.04
9	WPW10307114	Assembly, Oven Light (Replaces: W10307114)		Immediately	$ 99.44
10	WP4455605	Receiver, Hinge (left) (Replaces: 4455605)		Immediately	$ 103.82
11	W10160867	Frame, Front			$ 173.44
12	W11676901	Gasket, Oven (Replaces: W10850857)			$ 63.24
13	W10145398	Panel, Back Bottom	Appelez-nous	-
14	W10269208	Panel, Back Top	Appelez-nous	-
15	W11029221	Latch, Motorized (Replaces: W10195935)		Immediately	$ 280.85
16	W10235551	Back, Chassis	Appelez-nous	-
17	N/P	Liner, Oven (not Serviceable)	Appelez-nous	-
18	WPW10131825	Sensor (Replaces: W10131825)		Immediately	$ 86.25
19	WP4449154	Screw (Replaces: 4449154)			$ 6.80
20	WP4449040	Screw (Replaces: 4449040)			$ 6.78
21	WPW10169757	Bulb, Light (Replaces: W10169757)		Immediately	$ 42.64
22	WP4449751	Thermostat (tod) (Replaces: 4449751)		Immediately	$ 100.66
23	W10235536	Bottom, Chassis	Appelez-nous	-
24	W11368870	Retainer, Gasket (30") (Replaces: W10157511)			$ 21.35
25	W10169756	Lens, Light			$ 36.16
26	4449748	Screw			$ 12.20
10A	WP4455606	Receiver, Hinge (right) (Replaces: 4455606)		Immediately	$ 107.47
NI	WP3400968	Nut (Replaces: 3400968)		Immediately	$ 7.01
NI	W10160807	Insulation, Back	Appelez-nous	-
NI	N/P	Following Parts Not Illustrated	Appelez-nous	-
NI	W10860322	Insulation, Wrapper (Replaces: W10246067)	Appelez-nous	-
