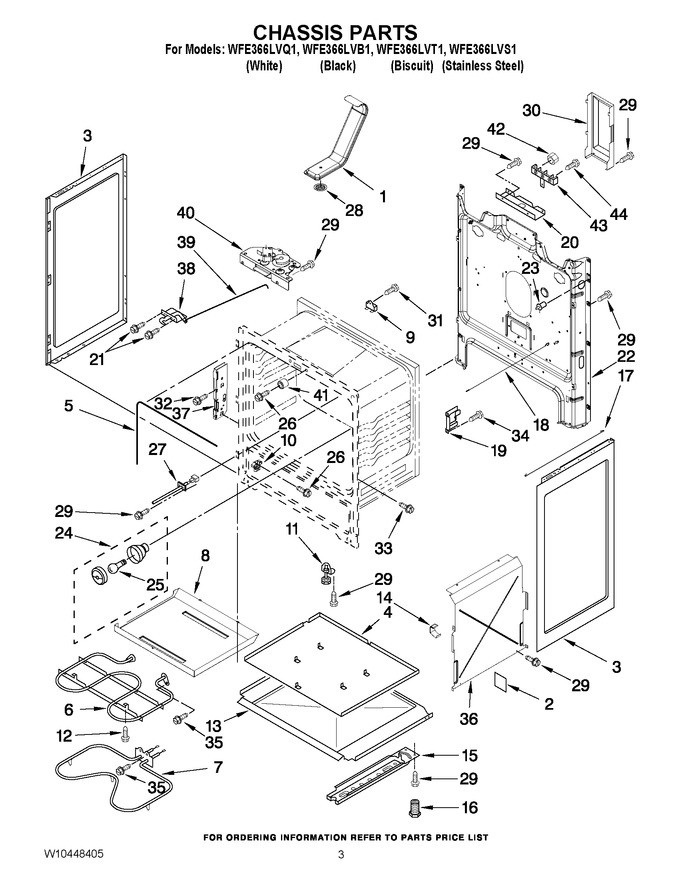

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Vent Tube Asmbly (Replaces: W10134285) |
|
Immediately | $ 225.43 | ||||
| 2 | W10646923 | Card, Insulator (Replaces: 9759689) |
|
$ 16.78 | |||||
| 3 | W10162246 | Panel, Side (biscuit) (Replaces: W10322771) |
|
$ 176.49 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 148.35 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 133.84 | |||||
| 4 | W10134125 | Shield, Heat |
|
$ 136.60 | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 139.16 | ||||
| 7 | WP9755770 | Element, Bake (hidden) (Replaces: W10308474) |
|
Immediately | $ 105.89 | ||||
| 8 | W10183712 | Tray, Hidden Bake |
|
$ 209.10 | |||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 10 | WPW10114344 | Glide, Drwr Top (Replaces: W10114344) |
|
Immediately | $ 7.34 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 13 | W10134121 | Tray, Insulation |
|
$ 38.36 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 15 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 17 | W10727426 | Rod, Insul Retainr (Replaces: W10196451) |
|
Immediately | $ 72.56 | ||||
| 18 | 9757239 | Rod - Dr Switch |
|
$ 82.60 | |||||
| 19 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 15.17 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 130.00 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | 9761301 | Screen, Catalyst |
|
$ 126.77 | |||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 30 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 119.66 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 34 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 35 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.04 | ||||
| 36 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 37 | W10647259 | Brkt - Mounting (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 38 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 219.74 | |||||
| 39 | W10078380 | Rod, Latch |
|
$ 81.35 | |||||
| 40 | WPW10107820 | Latch Asy, Rear (Replaces: W10107820) |
|
$ 265.33 | |||||
| 41 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 42 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 43 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 31.65 | ||||
| 44 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 49.92 | ||||
| NI | W10326347 | Insulation, Back |
|
- | |||||
| NI | W11684918 | Insulation, Vent (Replaces: W10333344) |
|
Immediately | $ 30.41 |
