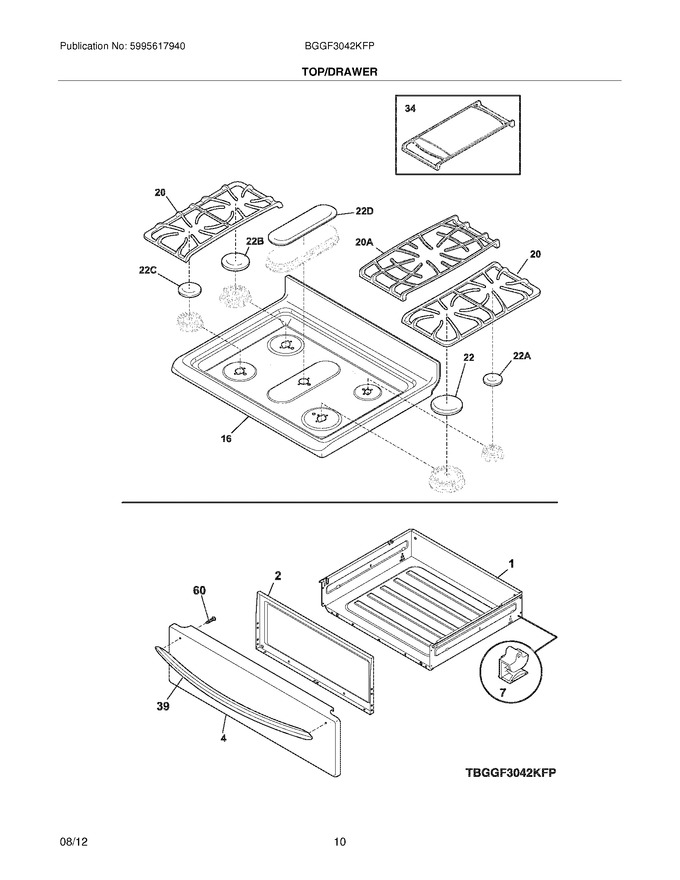

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	5304494412		Panel,drawer ,stainless ,outer   (Replaces: 316409312)				$ 98.53
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469653		Maintop Panel,black				$ 510.98
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	5304508468		Cap,18.2k Burner ,black   (Replaces: 316262104)				$ 49.45
34	316499900		Griddle				$ 114.83
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
60	5303288572		Screw-handle Mtg		Appelez-nous	-
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
