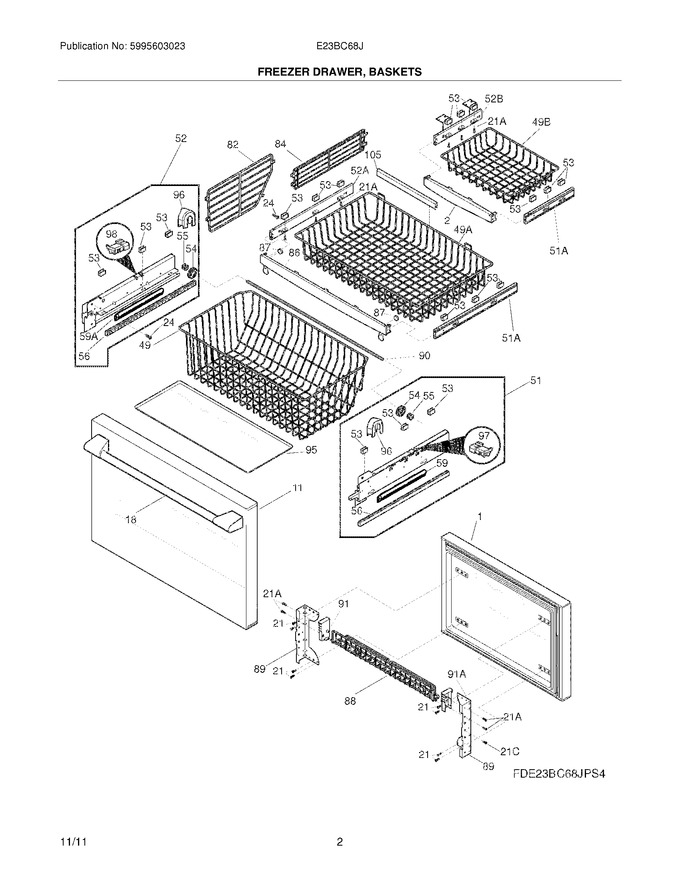

03 - Freezer Drawer - Basket


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls


15 - Ice Maker


18 - Wiring Diagram


19 - Wiring Diagram


20 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	242077901		Bar-stabilizer,freezer Drawer				$ 66.68
11	241987918		Drawer,stainless ,freezer				$ 525.63
18	242052504		Handle Assembly,stainless ,w/endcaps   (Replaces: 241637928)				$ 313.97
21	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242027002		Basket-frzr,lower				$ 215.04
51	241883605		Slide Assembly,basket Lower ,rh ,freezer Drawer				$ 252.89
52	241883705		Slide Assembly,basket Lower ,lh ,freezer Drawer				$ 263.24
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	242163801		Rack,drawer Travel ,lh				$ 14.98
56	242163802		Rack,drawer Travel ,rh				$ 13.99
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242027102		Divider,basket		Appelez-nous	-
84	241780903		Divider,basket ,upper		Appelez-nous	-
86	241953202		Bar,stabalizer ,freezer Drawer				$ 165.14
87	241812202		Magnet,freezer Drawer				$ 72.30
88	241824009		Rack-tilt Out,door .   (Replaces: 241824007)				$ 411.79
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770705		Bar,timing   (Replaces: 241770702)				$ 50.66
91	241824102		Cap-door Rack				$ 17.44
95	241770804		Tray,spill Guard		Appelez-nous	-
95	241770811		Tray,spill Guard				$ 109.36
96	241973501		Cover-pinion   (Replaces: 242156901)				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
105	242116801		Trim-basket				$ 17.72
21A	242146401		Screw,hex Whd ,1/4-20 X 3/8`` ,connects Frz,rails To Door ,(4)   (Replaces: 241899602)			Immediately	$ 14.27
21C	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
49A	241780807		Basket-frzr,upper				$ 153.33
49B	241831305		Basket-frzr,ceiling ,up Upper				$ 191.21
51A	5304491062		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894202)				$ 201.29
52A	5304491062		Slide Assembly,basket ,lh ,freezer Drawer   (Replaces: 241894204)				$ 201.29
52B	241894205		Slide Assembly,basket ,lh ,ceiling Bskt				$ 107.42
59A	241979701		Closure,drawer		Appelez-nous	-
91A	241824101		Cap,door Rack ,white				$ 17.44
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F21C	5304497384		Plate, Tapping   (Replaces: 241892902)				$ 15.60
NI	241979601		Bumper,rubber				$ 22.68
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
NI	218755406		Screw-set,10-32 X 0.375		Appelez-nous	-
NI	242011101		Pin-lock				$ 15.17
NI	242039701		Screw				$ 13.46
