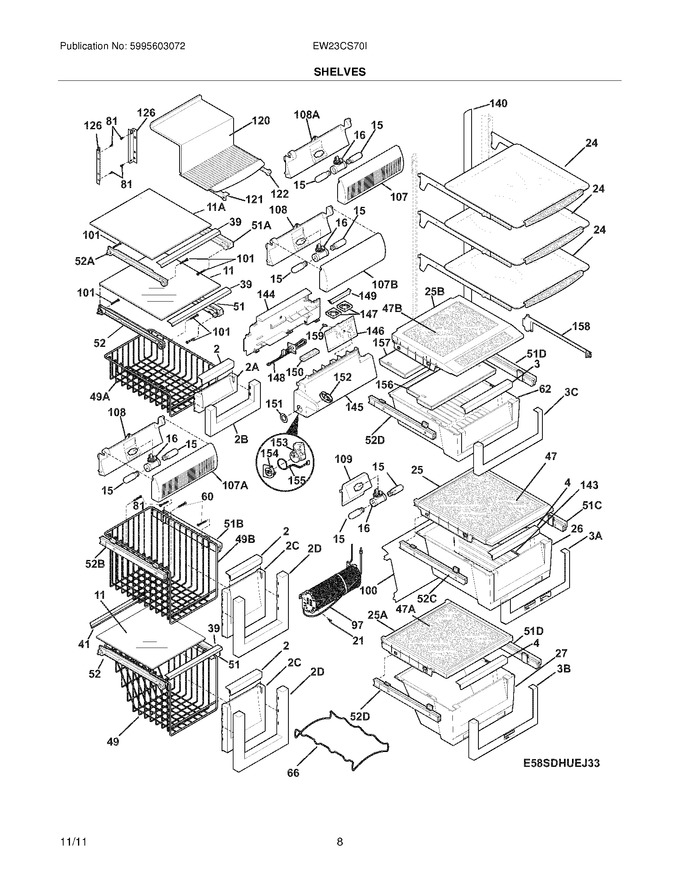

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


24 - Wiring Schematic


25 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan,silver				$ 74.81
4	241950801		Handle-crisper Pan,silver				$ 58.59
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 86.45
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240350160		Shelf-glass,formed   (Replaces: 241753101)			Immediately	$ 146.36
25	241745501		Cover-crisper Pan,upper				$ 61.61
26	241745603		Pan-crisper,upper ,w/divi Retainer				$ 230.69
27	241950502		Pan-crisper,lower   (Replaces: 241950501)				$ 229.64
39	240367603		Trim-shelf,11.65`` ,front				$ 74.42
41	241571201		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241744201		Basket-sliding				$ 170.05
51	241799801		Hanger-shelf Glass,rh				$ 58.82
52	241799901		Hanger-shelf Glass,lh				$ 74.32
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	241783501		Pan-meat				$ 182.75
66	241748901		Rack-wine				$ 77.97
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light,upper				$ 30.91
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241740901		Shelf-ice Cream				$ 78.25
121	241504701		Rail-ice Cream Shelf,lh				$ 64.49
122	241504702		Rail-ice Cream Shelf,rh				$ 75.08
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
143	241746001		Divider-crisper Pan				$ 51.50
144	241951501		Housing-control Unit		Appelez-nous	-
145	241951301		Cover-control Housing		Appelez-nous	-
149	241951601		Retainer,wire ,ptd		Appelez-nous	-
150	241953002		Pad,foam				$ 5.49
151	241512803		Seal				$ 6.01
152	241781601		Seal-return Air				$ 9.10
153	241781701		Valve,air Mixing				$ 197.74
154	241797901		Cover,air Mixer ,ptd		Appelez-nous	-
155	241781801		Heater,air Mixer ,ptd		Appelez-nous	-
156	241962701		Insulation,meat Pan Front				$ 99.09
157	241962702		Insulation,meat Pan Rear				$ 70.03
158	241955501		Cover-wire		Appelez-nous	-
159	241815401		Cap,pcba Hold Down		Appelez-nous	-
11A	240443358		Shelf-freezer,glass ,upper				$ 97.07
25A	241747101		Cover-crisper Pan,lower				$ 65.36
25B	241964501		Cover-ptd,complete Assy		Appelez-nous	-
2A	241741601		Trim-basket,front				$ 41.11
2B	241742101		Front-frzr Basket				$ 33.18
2C	241743201		Trim-basket				$ 83.69
3A	5303918369		Trim-crisper,w/hum Cntl&btn				$ 92.45
3B	5303918370		Trim-crisper,w/hum Cntl&btn				$ 83.27
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	241955601		Glass-insulated		Appelez-nous	-
49A	241742201		Basket-sliding,upper ,half		Appelez-nous	-
49B	241744001		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 63.79
51B	241809101		Hanger-basket,rh				$ 187.82
51C	240579821		Hanger-basket,13.00 ,rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,10.19 ,rh   (Replaces: 240579808)				$ 102.06
52A	241514801		Hanger-shelf Glass,lh				$ 343.75
52B	241809102		Hanger-basket,lh				$ 158.05
52C	240579819		Hanger-basket,13.00 ,lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket,10.19 ,lh   (Replaces: 240579806)				$ 100.65
F107	241513402		Shield-light,meat Pan				$ 59.90
F107	241521802		Shield-light,frzr				$ 31.38
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F144	241952401		Harness-power Ptd		Appelez-nous	-
F146	241955001		Board-main Power,ptd				$ 332.59
F147	241977001		Fan,cooling ,small				$ 119.83
F148	241782001		Heater-ptd,115 V				$ 194.90
F15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
F158	241952601		Harness,ptd				$ 132.53
F16	241622802		Socket-light,frz Light				$ 65.93
F25B	241955201		· Frame-meat Pan Cover,lower		Appelez-nous	-
F25B	241783301		· Harness-wiring,ptd W/led		Appelez-nous	-
F25B	242025901		Overlay,electronic ,membrane Switch				$ 159.47
F25B	241958401		Control-electronic,ptd				$ 272.87
F25B	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
F47B	5304469950		Sealant,rubber Silicone			Immediately	$ 89.95
F51B	297049500		Clip-slide,basket			Immediately	$ 20.56
F51C	241563901		Clip-slide,pan-crisper ,rear				$ 35.81
F51C	241564001		Clip-slide,pan-crisper ,front		Appelez-nous	-
FNI	241510802		Harness-wiring,frz Light				$ 41.81
FNI	241797602		Harness-wiring		Appelez-nous	-
NI	241935541		Energy Guide		Appelez-nous	-
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
NI	240349801		Clip-slide,pan-crisper				$ 20.48
