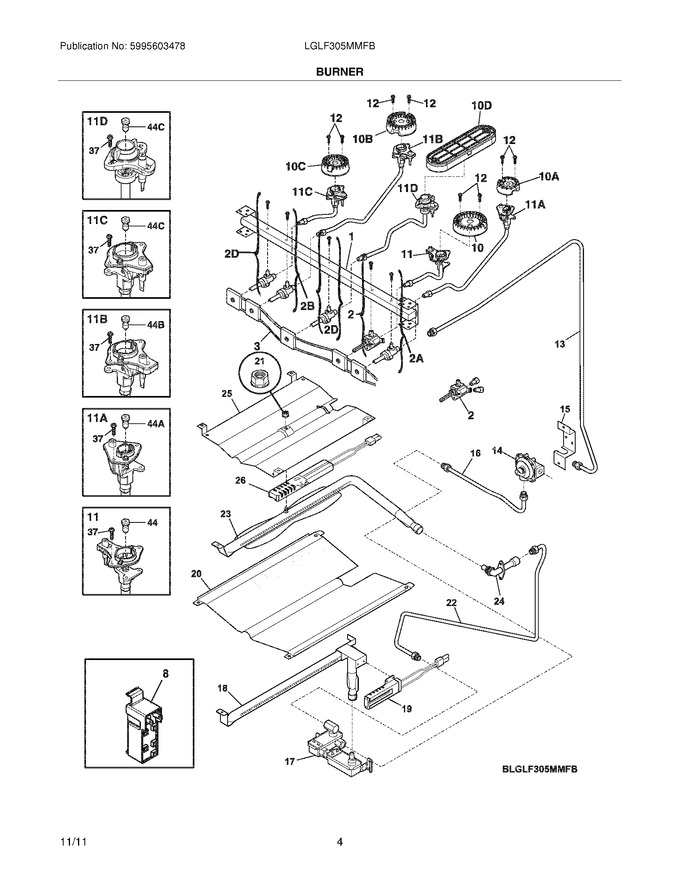

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
13	316489101		Tube-manifold Supply			Immediately	$ 102.06
15	316091600		Bracket-regulator				$ 73.56
20	5304519024		Baffle,oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
F1	316417901		Manifold				$ 133.47
F10	316438400		Burner,sealed ,17k			Immediately	$ 83.42
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10D	316559300		Burner,sealed ,oval				$ 177.19
F11	316536620		Ignitor/orifice Assy .,,lp, Top Burner ,right Front,17k ,w/tube & Holder		Appelez-nous	-
F11A	316536611		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,lp Gas ,w/holder ,tube				$ 101.50
F11B	316536617		Ignitor/orifice Assy.,top Burner ,left Rear,14k ,lp Gas ,w/holder, Tube		Appelez-nous	-
F11C	316536606		Ignitor/orifice Assy.,top Burner ,9.5k ,lp Gas,w/holder ,tube		Appelez-nous	-
F11D	316536624		Ignitor/orifice Assy.,top Burner ,right Front,9.5k ,w/holder ,tube		Appelez-nous	-
F14	316416707		Regulator,pressure ,lp Gas		Appelez-nous	-
F16	5304507348		Tube-valve To Rgltr,3/8   (Replaces: 316431000)			Immediately	$ 47.03
F17	316404902		Valve,safety ,lp Gas		Appelez-nous	-
F18	316404401		Burner,oven ,lp Gas		Appelez-nous	-
F19	5304506545		Ignitor,broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
F2	5303935358		Valve,11k Burner ,w/mtg Screw		Appelez-nous	-
F22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
F23	316404305		Burner,broiler ,lp Gas		Appelez-nous	-
F24	316409702		Elbow,mixer ,lp Gas		Appelez-nous	-
F26	316489403		Ignitor,bake Burner			Immediately	$ 113.15
F2A	5303935353		Valve,5k Burner ,w/mtg Screw		Appelez-nous	-
F2B	5303935354		Valve,9k Burner ,w/mtg Screw		Appelez-nous	-
F2D	5303935359		Valve-top Burner,tortilla		Appelez-nous	-
F3	316580615		Harness-ignitor			Immediately	$ 109.27
F44	316527507		Orifice Lp,top Burner ,18k				$ 10.62
F44A	316527505		Orifice,top Burner ,5k ,lp				$ 12.89
F44B	316527512		Orifice,top Burner ,14k ,lp				$ 17.72
F44C	316527501		Orifice,top Burner ,9.5k				$ 18.43
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
FNI	5304494425		Harness-ignitor   (Replaces: 316580602)				$ 86.45
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316257400		Bracket,spark Module				$ 15.17
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316401500		Cover,broil Ignitor				$ 12.89
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
