SELECT A DIAGRAM

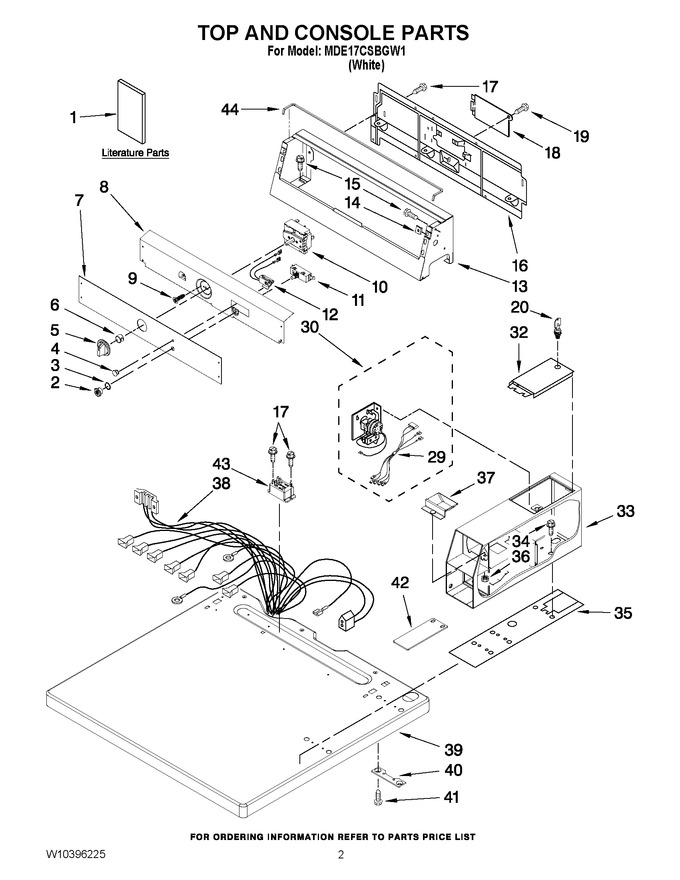

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10396189 | Wiring Diagram |
|
- | |||||
| 1 | W10297242 | Instructions Installation |
|
- | |||||
| 2 | W10146429 | Nut, 8-32 X 3/8 |
|
- | |||||
| 3 | WPW10139799 | Washer (Replaces: W10139799) |
|
$ 8.32 | |||||
| 4 | WPW10133502 | Lens, Pilot Light Amber (Replaces: W10133502) |
|
$ 11.58 | |||||
| 5 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 23.64 | ||||
| 6 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 7 | W10135190 | Facia / Overlay |
|
- | |||||
| 8 | W10124213 | Bracket, Control |
|
- | |||||
| 9 | W10139100 | Screw |
|
$ 11.15 | |||||
| 10 | W10327100 | Switch, Cycle Selection |
|
$ 184.35 | |||||
| 11 | WPW10149462 | Switch, Push-to-start (Replaces: W10181931) |
|
$ 60.77 | |||||
| 12 | W10139459 | Lamp-indicator |
|
- | |||||
| 13 | W10231471 | Console (Replaces: W10205153) |
|
- | |||||
| 14 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 15 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 16 | W10135273 | Panel, Rear (upper) |
|
- | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 19 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 20 | W11315637 | Service Door Lock (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 29 | W10111029 | Harness, Timer |
|
- | |||||
| 30 | WPW10135270 | Timer & Harness Assembly 50 Hz. (Replaces: W10135270) |
|
$ 308.49 | |||||
| 32 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 33 | WPW10529172 | Meter Case (Replaces: W10136649) |
|
$ 345.34 | |||||
| 34 | W11715721 | Bolt, Meter Case Mounting (5/16-24 X 1.00) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 35 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 36 | W10139060 | Nut, 1/4-20 |
|
- | |||||
| 37 | W10133509 | Funnel, Coin |
|
$ 74.49 | |||||
| 38 | W10353577 | Harness, Main |
|
- | |||||
| 39 | WPW10136707 | Top (Replaces: W10136707) |
|
$ 320.56 | |||||
| 40 | 3347825 | Plate, Mounting |
|
- | |||||
| 41 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 42 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 74.57 | |||||
| 43 | WP1188043 | Relay, Heater 230v (Replaces: 1188043) |
|
$ 99.12 | |||||
| 44 | WPW10157932 | Foam Seal (Replaces: W10157932) |
|
Immediately | $ 7.25 |
