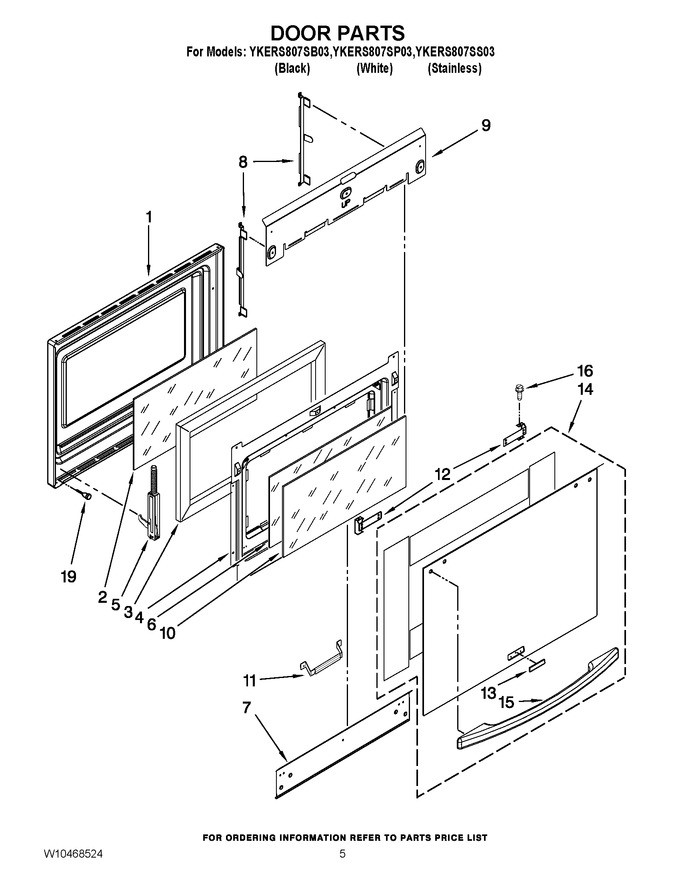

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10277749		Panel, Door				$ 137.60
2	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 127.76
3	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
4	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
5	WP9760579		Hinge, Oven Door (right)   (Replaces: 9760579)			Immediately	$ 64.35
5	WP9760574		Hinge, Oven Door (left)   (Replaces: 9760574)			Immediately	$ 60.36
6	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
7	4457114		Shield, Heat Bottom				$ 186.68
8	WP9759229		Bracket, Glass Side   (Replaces: 9759229)				$ 160.71
9	4457104		Shield, Heat Top				$ 33.62
10	WP9759225		Glass, Inner Door   (Replaces: 9759225)			Immediately	$ 174.78
11	9759230		Bracket, Central				$ 36.30
12	W10246114		Bracket, Handle (right)				$ 41.38
12	W10246113		Bracket, Handle (left)				$ 28.40
13	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 63.17
13	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 49.98
13	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 59.99
14	W10155557		Assembly, Door Kit (stainless)				$ 481.06
14	W10131889		Assembly, Door Kit (white)				$ 382.56
14	W10131888		Assembly, Door Kit (black)				$ 345.33
15	W10292381		Handle, Door (black)				$ 94.58
15	W10292382		Handle, Door (white)				$ 96.17
15	W10292380		Handle, Door (stainless)				$ 117.19
16	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
19	4448520		Bumper, Door				$ 19.07
