01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

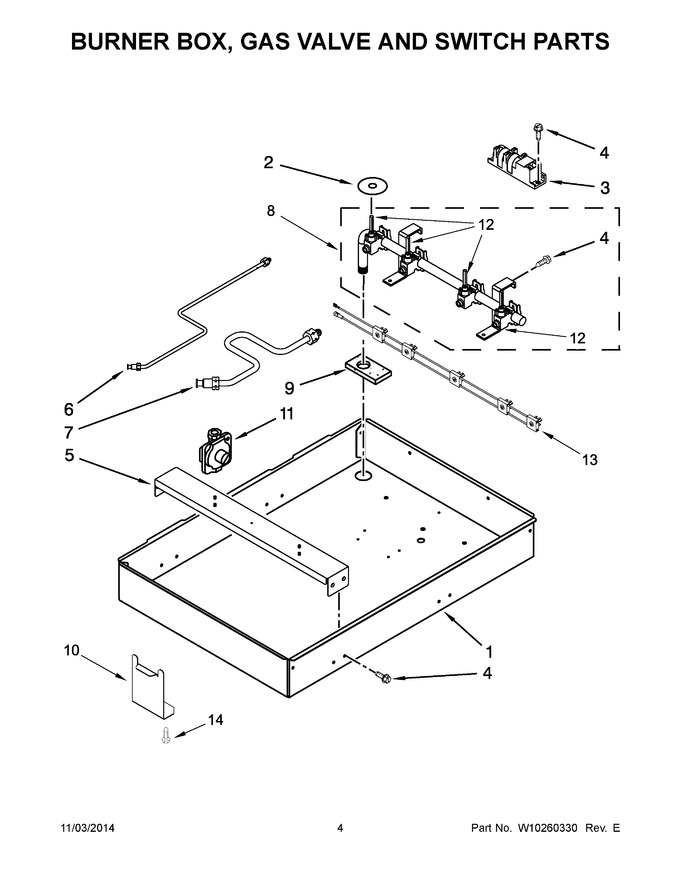

03 - Burner Box, Gas Valve And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176503 | Burner Box |
|
- | |||||
| 2 | WP74007705 | Grommet (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 3 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F848-51 | Bracket, Orifice Holder |
|
$ 66.15 | |||||
| 6 | 7506P375-60 | Tubing, Gas Burner (left) |
|
$ 69.25 | |||||
| 7 | 7506P374-60 | Tubing, Gas Burner (right) |
|
$ 101.62 | |||||
| 8 | 7513P516-60 | Pipe, Manifold Assembly |
|
$ 364.92 | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | WP3801F935-51 | Bracket, Mounting (Replaces: 3801F935-51) |
|
$ 37.09 | |||||
| 11 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 12 | 7502P558-60 | Valve, Gas (left Rear) |
|
- | |||||
| 13 | 7450P097-60 | Harness, Switch |
|
$ 126.80 | |||||
| 14 | WP7101P062-60 | Screw (Replaces: 7101P062-60) |
|
$ 7.24 | |||||
| 12A | 7502P559-60 | Valve, Gas (left Front And Right Rear) |
|
- | |||||
| 12B | 7502P560-60 | Valve, Gas (right Front) |
|
- | |||||
| NI | 7509P173-60 | Miscellaneous Parts, Conversion Kit Lp |
|
$ 88.97 |
