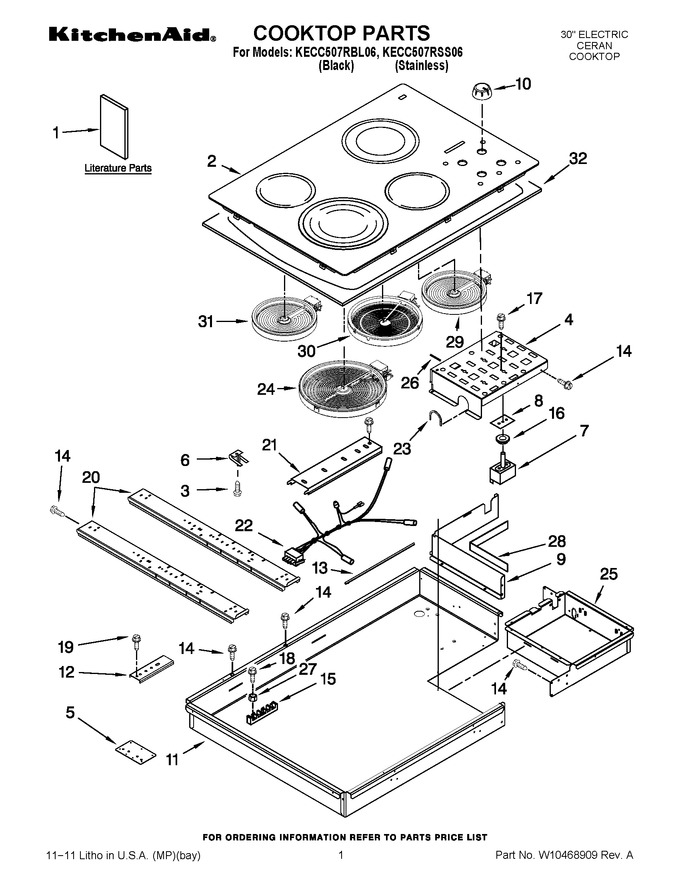

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286066 | Installation Instructions Cooktop |
|
- | |||||
| 1 | 8304571 | Undercounter Oven |
|
- | |||||
| 1 | W10435986 | Wiring Diagram |
|
- | |||||
| 1 | W10162162 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10322778 | Cooktop, Glass (black) (Replaces: W10140988) |
|
$ 423.30 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | W10414019 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 8286535 | Bracket, Bottom |
|
$ 41.45 | |||||
| 6 | 9759094 | Spring Locator |
|
$ 6.34 | |||||
| 7 | 9763765 | Switch, Infinite (triple) |
|
$ 209.72 | |||||
| 7 | 9763764 | Switch, Infinite (dual) |
|
$ 166.92 | |||||
| 7 | 9763763 | Switch, Infinite (single) |
|
$ 155.07 | |||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 9 | 8286577 | Wall, Inside |
|
- | |||||
| 10 | WP8286096BL | Knob, Control (black) (Replaces: 8286096BL) |
|
$ 25.33 | |||||
| 11 | 8286554 | Box, Burner |
|
- | |||||
| 12 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 13 | 8285240 | Seal, Heat |
|
$ 65.35 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | WPW10245259 | Block ,terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 16 | 8285469 | Seal, Switch (black) |
|
$ 45.00 | |||||
| 17 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 18 | WP74005233 | Screw (Replaces: 7101P520-60) |
|
$ 6.78 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 21 | 8286344 | Rail, Element |
|
- | |||||
| 22 | 8286055 | Lamp, Hot Surface Indicator |
|
$ 81.82 | |||||
| 23 | 8286607 | Grommet, Flexible |
|
- | |||||
| 24 | WP8286187 | Element, Surface 2500/1800/900w Lf (Replaces: 8286187) |
|
$ 296.03 | |||||
| 25 | W10180228 | Box, Control |
|
- | |||||
| 26 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 27 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 28 | 8286599 | Inside Wall, Insulation |
|
- | |||||
| 29 | W10823699 | Element, Surface 1500w Rf (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 30 | 8285937 | Element, Surface 2000/1000w Rr |
|
$ 141.19 | |||||
| 31 | W10823711 | Element, Surface 1200w Lr (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 32 | W10142240 | Frame-cooktop (ss Model Only) |
|
$ 227.45 |
