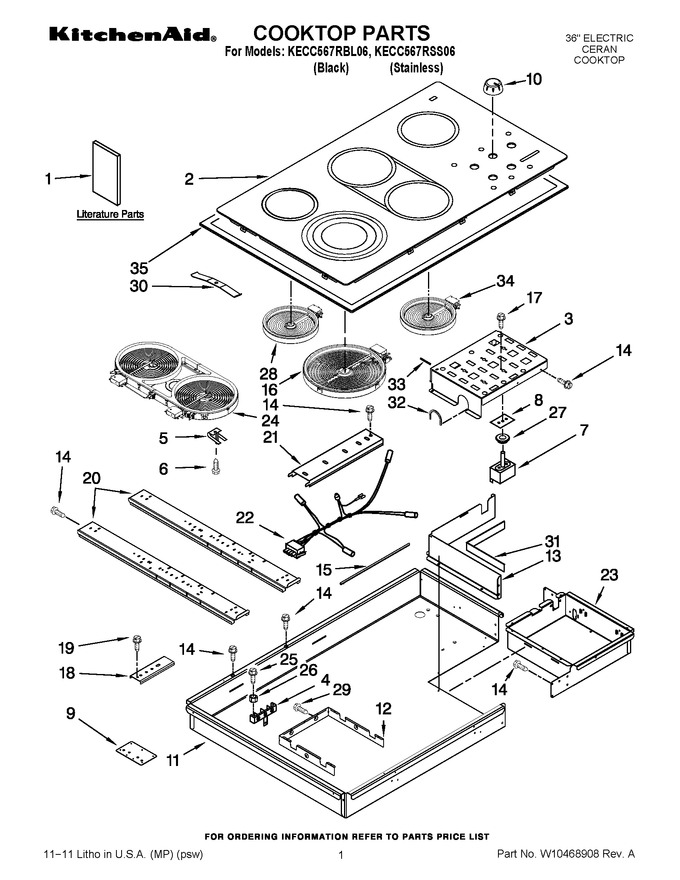

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8286066 | Installation Instructions Cooktop |
|
- | |||||
| 1 | 8304571 | Undercounter Oven |
|
- | |||||
| 1 | W10435982 | Wiring Diagram |
|
- | |||||
| 1 | 8286062 | Energuide Label |
|
- | |||||
| 1 | W10162162 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10140998 | Cooktop, Glass (black) |
|
- | |||||
| 3 | W10414012 | Bracket, Switch |
|
- | |||||
| 4 | WPW10245259 | Block ,terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 5 | 9759094 | Spring Locator |
|
$ 6.34 | |||||
| 6 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 7 | 9763763 | Switch, Infinite (single) |
|
$ 155.07 | |||||
| 7 | 9763764 | Switch, Infinite (dual) |
|
$ 166.92 | |||||
| 7 | 9763765 | Switch, Infinite (triple) |
|
$ 209.72 | |||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 9 | 8286535 | Bracket, Bottom |
|
$ 41.45 | |||||
| 10 | WP8286096BL | Knob, Control (black) (Replaces: 8286096BL) |
|
$ 25.33 | |||||
| 11 | 8286555 | Box, Burner |
|
- | |||||
| 12 | 9760762 | Shield, Heat |
|
- | |||||
| 13 | 8286578 | Inside, Wall |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285242 | Seal, Heat |
|
$ 63.49 | |||||
| 16 | WP8286187 | Surface Element 2500/1800/900w Lf (Replaces: 8286187) |
|
$ 296.03 | |||||
| 17 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 18 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 21 | 8286345 | Rail, Element |
|
- | |||||
| 22 | 8286056 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | W10180229 | Box, Control |
|
- | |||||
| 24 | W10823695 | Element, Surface 4300w (bridge) (Replaces: 8285848) |
|
Immediately | $ 291.55 | ||||
| 25 | WP74005233 | Screw (Replaces: 7101P520-60) |
|
$ 6.78 | |||||
| 26 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 27 | 8285469 | Seal, Switch (black) |
|
$ 45.00 | |||||
| 28 | W10823711 | Surface Element 1200w Lr (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 29 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 30 | 8286582 | Spring Clip, Bridge |
|
- | |||||
| 31 | 8286600 | Inside Wall, Insulation |
|
- | |||||
| 32 | 8286607 | Gromment, Flexible |
|
- | |||||
| 33 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 34 | W10823699 | Surface Element 1500w Rr (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 35 | W10142239 | Frame-cooktop (ss Model Only) |
|
$ 240.36 |
