SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

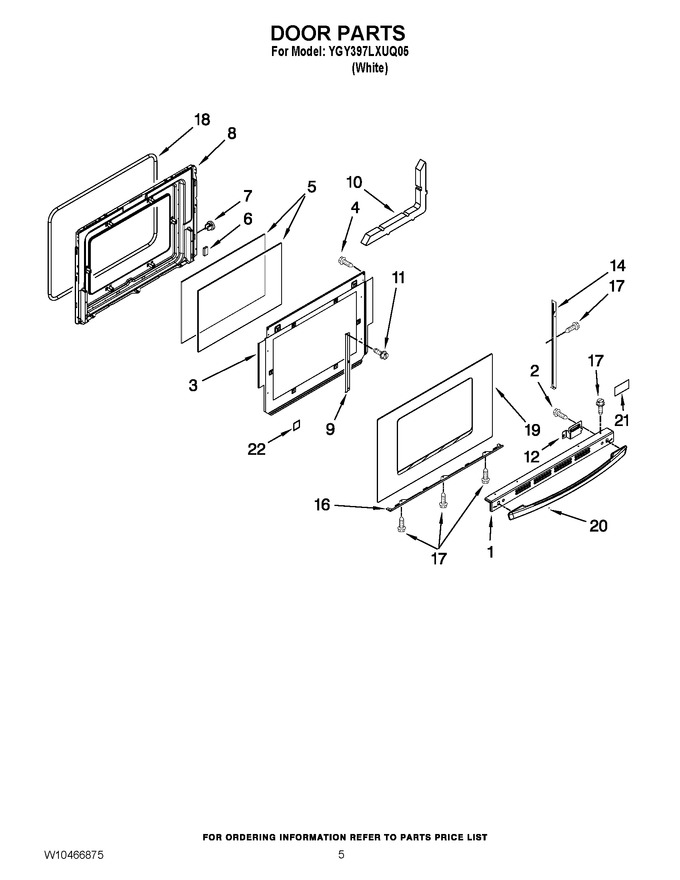

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-71		Trim, Door Top				$ 98.12
2	W11396735		Screw, Handle (2)   (Replaces: W10163951)				$ 12.65
3	3601F373-51		Baffel, Retainer				$ 244.22
4	WP90767		Screw 8ab 1/2   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
7	WP74001574		Nut, Snap (4)   (Replaces: 7103P141-60)			Immediately	$ 9.91
8	2402W312-19		Lining, Door				$ 144.50
9	3801F886-51		Bracket, Glass (2)				$ 38.25
10	7002P246-60		Insulation, Door				$ 58.49
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	3801F832-45		Bracket, Handle (left)				$ 19.12
12	3801F831-45		Bracket, Handle (right)				$ 19.17
14	WP3608F117-71		Trim, Door Side (black, Left)   (Replaces: 3608F117-71)				$ 111.43
14	WP3608F116-71		Trim, Door Side (black, Right)   (Replaces: 3608F116-71)				$ 112.01
16	WP3807F708-71		Trim, Door Bottom   (Replaces: 3807F708-71)				$ 144.83
17	WP98008544		Screw, Trim   (Replaces: 7101P636-60)				$ 11.89
18	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
19	7902P814-60		Panel, Outer Door		Appelez-nous	-
20	WPW10118430		Handle, Door   (Replaces: W10118430)				$ 239.39
21	W10175320		Nameplate, Logo				$ 41.71
22	8010P152-60		Spacer, Rubber		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
