SELECT A DIAGRAM
01 - Cooktop Parts

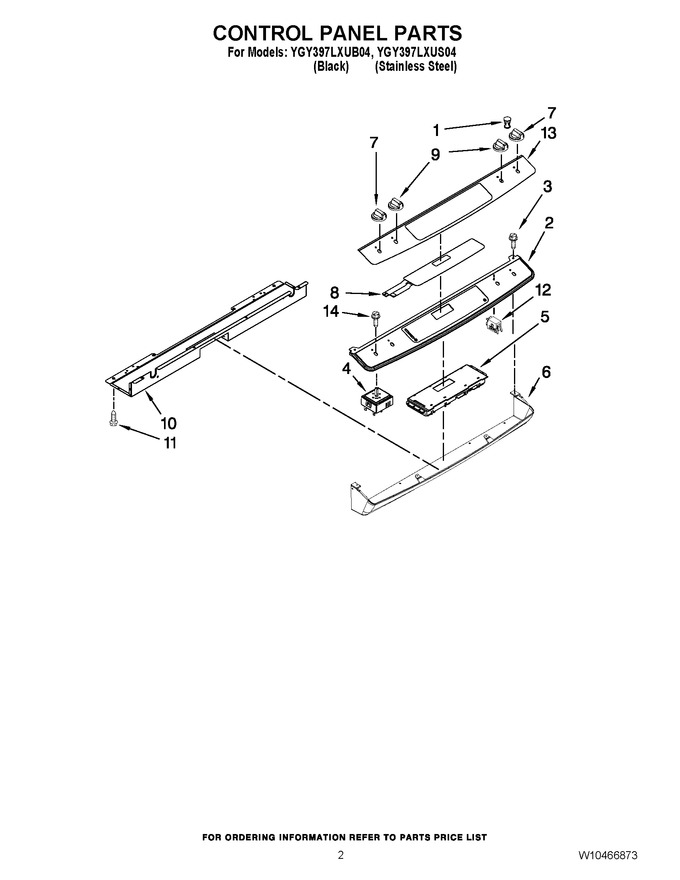

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 11.42 | |||||
| 2 | 7720P535-60 | Panel, Control (black) |
|
$ 147.50 | |||||
| 2 | W10182766 | Panel, Control (s.steel) |
|
- | |||||
| 3 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 6.98 | |||||
| 4 | WP7403P238-60 | Switch, Infinte (6`` (lf,rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 4 | WPW10441696 | Switch, Infinte (8`` (rf,lr)) (Replaces: W10441696) |
|
Immediately | $ 100.89 | ||||
| 5 | 8507P390-60 | Control |
|
$ 367.00 | |||||
| 6 | W10185606 | Panel,control(lwr) |
|
$ 130.08 | |||||
| 7 | WP7737P414-60 | Knob (lf,rr) (Replaces: 7737P414-60) |
|
$ 18.96 | |||||
| 8 | WPW10207928 | Switch, Membrane (Replaces: W10207928) |
|
$ 245.56 | |||||
| 9 | WP7737P417-60 | Knob (rf,lr) (Replaces: 7737P417-60) |
|
Immediately | $ 18.45 | ||||
| 10 | 3807F769-51 | Support, Control Panel |
|
- | |||||
| 11 | W10185612 | Screw |
|
$ 6.07 | |||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 13 | W10279070 | Overlay (s.steel Mdl Only) |
|
$ 163.31 | |||||
| 14 | W11846982 | Screw (Replaces: 7101P676-60) |
|
- |
