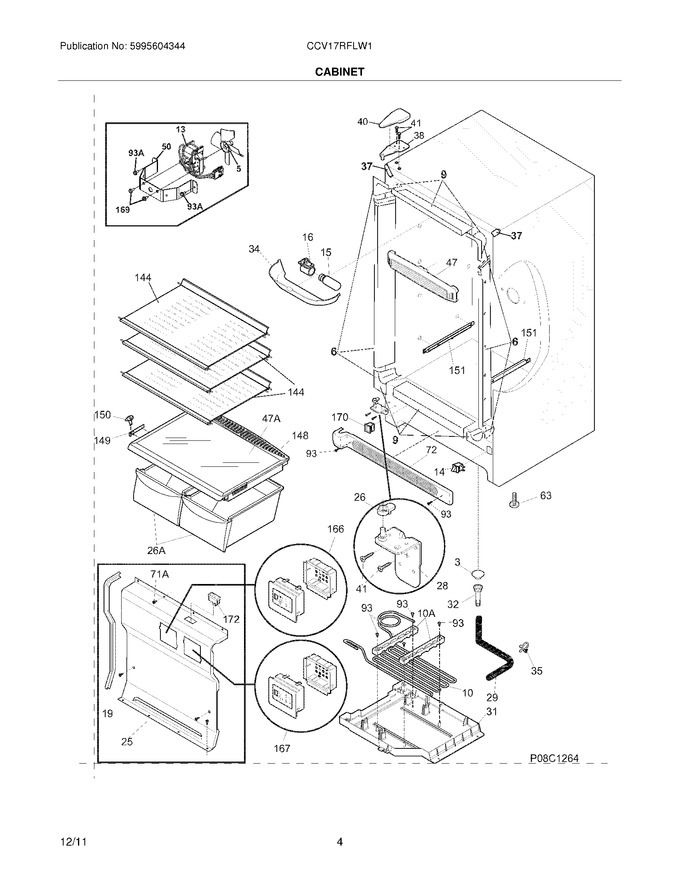

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098853		Cover-evaporator				$ 91.93
26	297248200		Ramp,door Closer ,lh				$ 12.77
28	297283901		Hinge-bottom,stepped Pin ,lh				$ 25.52
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip,wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner,white ,(2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge   (Replaces: 297236250)			Immediately	$ 14.18
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
144	297324500		Shelf-assy,fixed,glass ,complete				$ 114.54
148	216995501		Cover-crisper Pan		Appelez-nous	-
149	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob,humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988201		Support-crspr Cover,lh				$ 67.33
151	216988200		Support-crspr Cover,rh				$ 68.04
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280400		Valve,breather				$ 10.13
172	297251201		Switch,w/harness				$ 166.69
10A	297177400		Bracket,(2) ,drain Pan		Appelez-nous	-
26A	216959900		Pan-crisper,(2)				$ 169.68
47A	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
F10	297334500		Heater-drain Pan				$ 72.30
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F166	297282800		Electronic Control,freezer ,assy				$ 218.30
F167	297282700		Electronic Control,refrigerator ,assy				$ 238.89
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	216327800		Clip,wire		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
NI	216503300		Ramp,door Closer				$ 8.82
NI	216910417		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
