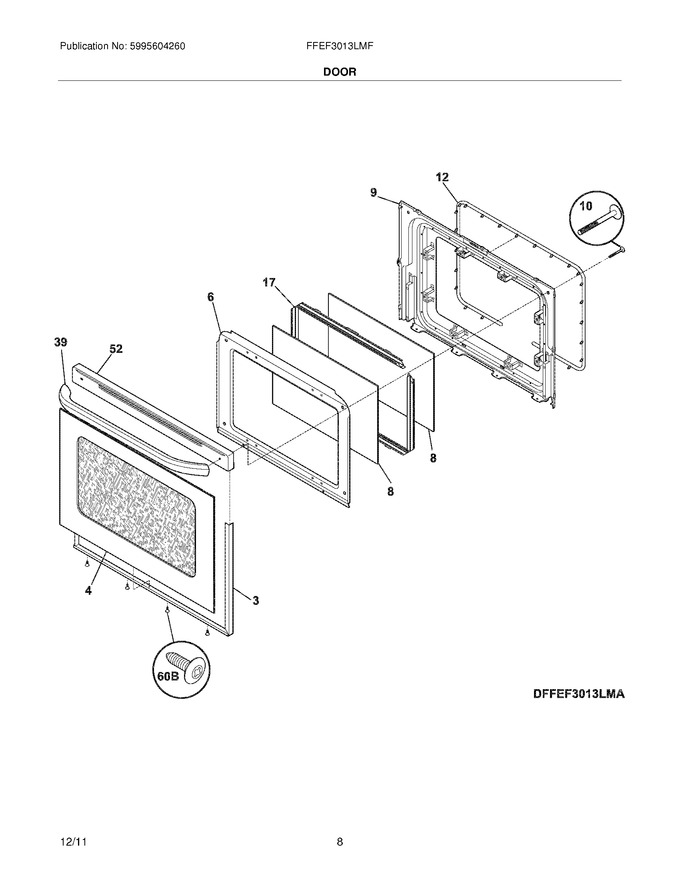

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935345		Trim Kit-door,3 Sided ,black ,w/tape				$ 53.34
4	316452817		Door Assembly,glass/overlay ,black/slvr Mist,w/foil & Tape		Appelez-nous	-
6	316222711		Shield,wool ,black ,oven Door				$ 47.90
8	5304503232		Glass,oven Door ,clear ,heat Barrier ,(2)   (Replaces: 316237100)				$ 116.95
9	316230629		Liner,oven Door		Appelez-nous	-
10	316278700		Screw,wafer Head ,10-14 X 1 3/8 ,handle Mtg			Immediately	$ 27.50
12	316239700		Seal,oven Door			Immediately	$ 152.43
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316545300		Handle,door/drawer ,black				$ 137.92
52	316491201		Cap,door Trim ,black				$ 99.94
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
