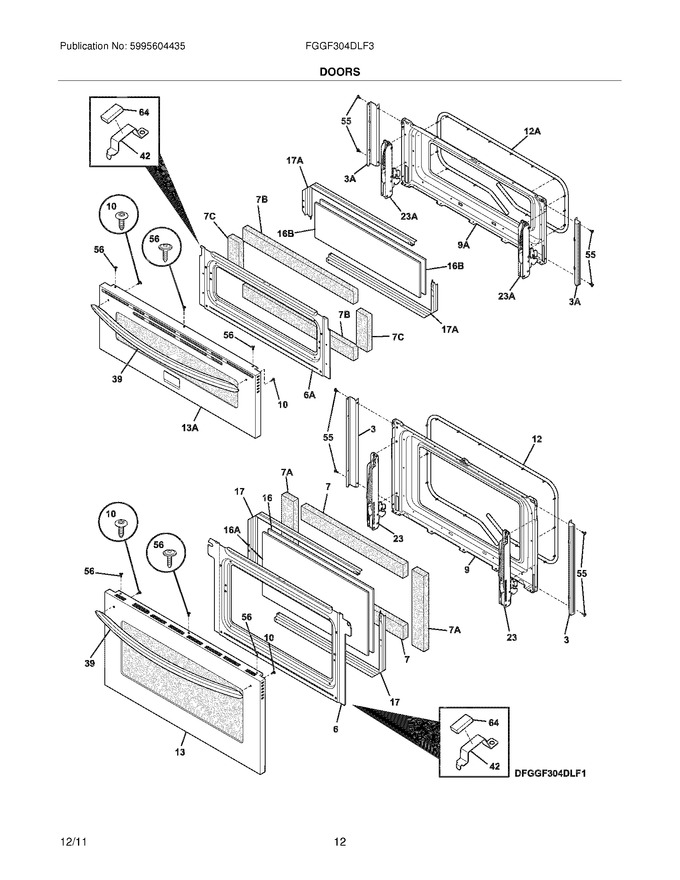

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301432		Trim,oven Door ,black ,side				$ 38.96
6	318260525		Baffle,door ,lower		Appelez-nous	-
7	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9	318259669		Liner,oven Door ,lower		Appelez-nous	-
10	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18
12	318053154		Seal,oven Door				$ 93.87
13	318939001		Door Assembly,glass ,black/stainless				$ 317.52
16	318212216		Glass,oven Door ,heat Barrier ,hbii				$ 160.76
17	318264721		Spacer,glass ,lower ,(2)		Appelez-nous	-
23	318567121		Hinge,door ,upper Oven ,(2)				$ 98.81
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
55	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
56	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
64	318165800		Spacer				$ 17.72
12A	318053152		Seal,oven Door ,upper				$ 89.57
13A	318934301		Panel Assembly,upper Door ,stainless ,outer,w/badge				$ 269.06
16B	318212212		Glass,upper Oven ,heat Barrier ,(2) ,hbii				$ 249.80
17A	318264720		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567130		Hinge,door ,upper Oven ,(2)				$ 92.93
3A	318301422		Trim,upper Door ,black		Appelez-nous	-
6A	318260526		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
7B	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
7C	318372007		Insulation,6.625 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9A	318259678		Liner,oven Door ,upper				$ 165.32
NI	316433603		Label,anti-tip				$ 3.55
NI	5304440228		Washer,flat ,upper		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
