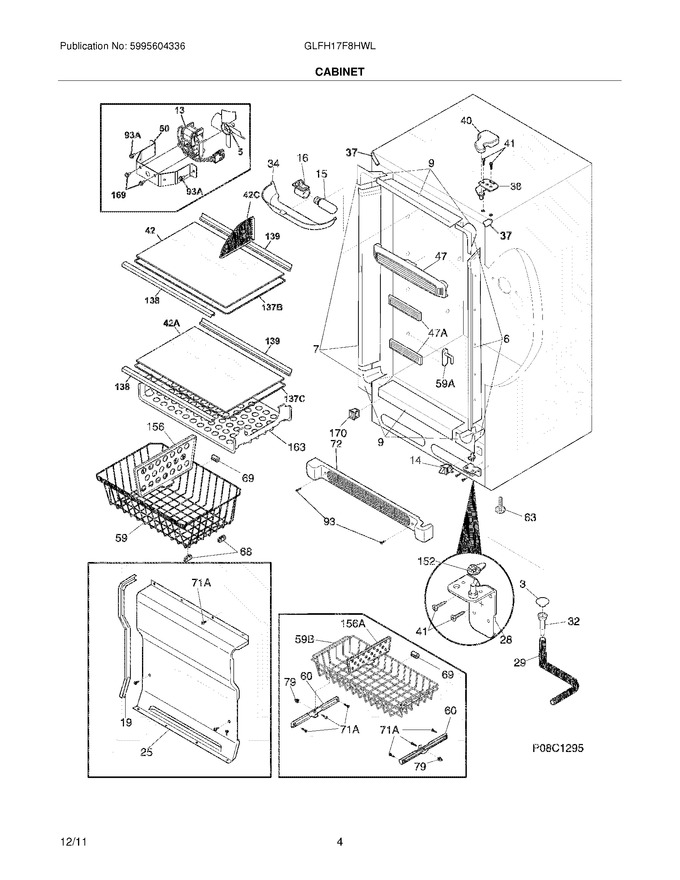

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
7	297200800		Breaker Kit W/corners,incl Lock Catch				$ 86.10
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099251		Cover-evaporator				$ 109.93
28	297179300		Hinge,bottom/rh				$ 48.68
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner,white ,(2)   (Replaces: 297273900)				$ 7.59
38	297154600		Hinge-upper				$ 33.56
40	297154701		Cover-upper Hinge,white				$ 9.71
41	240578902		Screw,tamper Proof ,1/4-20 X 5/8   (Replaces: 297236200)			Immediately	$ 14.18
42	297166800		Glass-shelf				$ 170.47
47	297192902		Baffle,air ,blue		Appelez-nous	-
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	297344000		Basket,bottom				$ 102.06
60	297013500		Slide,shelf				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
72	297198900		Grille/kickplate,32`` ,white				$ 30.71
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
138	297203602		Trim-shelf,front				$ 19.14
139	297218202		Trim-shelf,rear				$ 174.64
152	216974600		Bearing,hinge Closer				$ 16.36
156	297202502		Divider,basket ,btm		Appelez-nous	-
163	297185302		Shelf,pizza				$ 100.28
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280400		Valve,breather				$ 10.13
42A	297166801		Glass-shelf				$ 59.54
42C	297183802		Divider,blue ,glass Shelf				$ 24.01
47A	297205802		Diffuser,air ,blue ,(2)				$ 12.44
59A	216486500		Stop-basket,(2)				$ 20.58
59B	297343800		Basket				$ 96.12
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F137	297166901		Frame,shelf				$ 50.23
F137	297166900		Frame				$ 58.17
F156	297202302		Divider,basket		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216910410		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297257400		Label,start Guide				$ 2.98
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297281200		Instructions,elect Guide ,precision		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-
