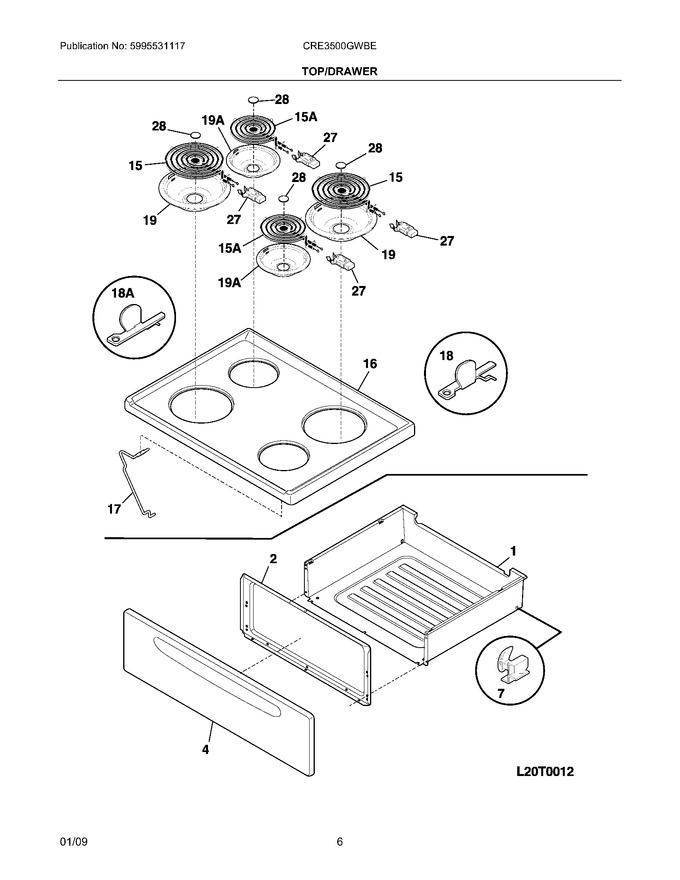

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231400		Liner,drawer		Appelez-nous	-
4	316231205		Panel-drawer,white				$ 51.92
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316245402		Main Top,white				$ 478.49
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067018)			Immediately	$ 9.85
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19A	318067017		Pan,surface Element ,small ,chrome		Appelez-nous	-
F15	316442300		Element,surface ,8``/large ,2100w			Immediately	$ 59.16
F15A	318372210		Element,surface ,6``/small ,1250w   (Replaces: 316439800)			Immediately	$ 20.21
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
FNI	5303290291		Wiring Harness,surface Element		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
