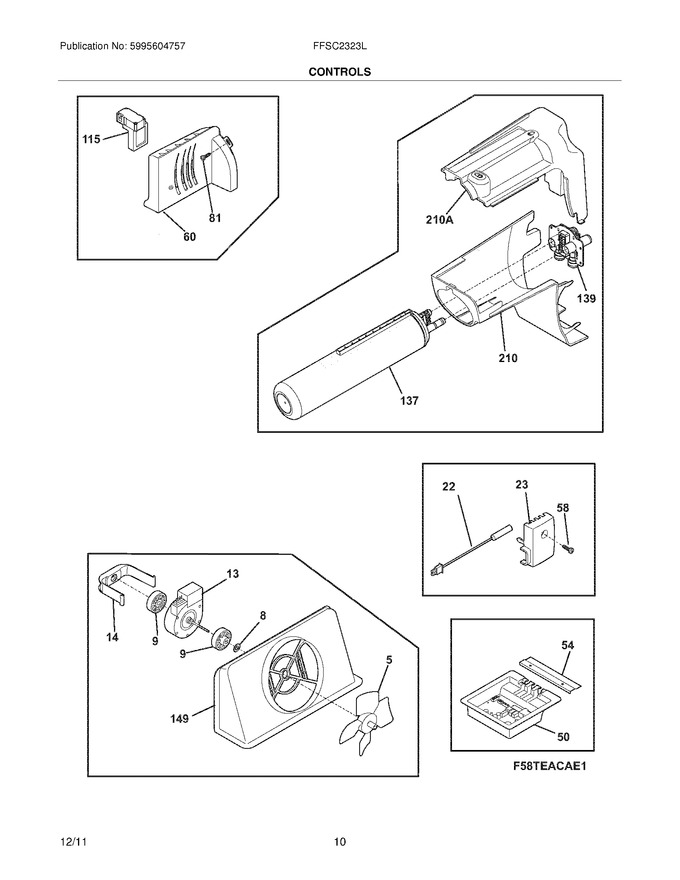

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 66.63 | |||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 60 | 241755401 | Diffuser-air |
|
$ 37.57 | |||||
| 81 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 241853801 | Damper Assy,w/seal |
|
$ 157.35 | |||||
| 137 | WF3CB | Filter-water,carbon (Replaces: 242069601) |
|
Immediately | $ 88.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 210 | 241983804 | Housing-water Filtr |
|
- | |||||
| F13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| F149 | 241528304 | Seal,foam ,evap Fan Assy |
|
- | |||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| F22 | 240597220 | Sensor,(2) (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| F50 | 5303918525 | Board-main Power (Replaces: 242009011) |
|
Immediately | $ 703.50 | ||||
| NI | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| NI | 241755501 | Insulation-air Duct |
|
$ 35.44 |
