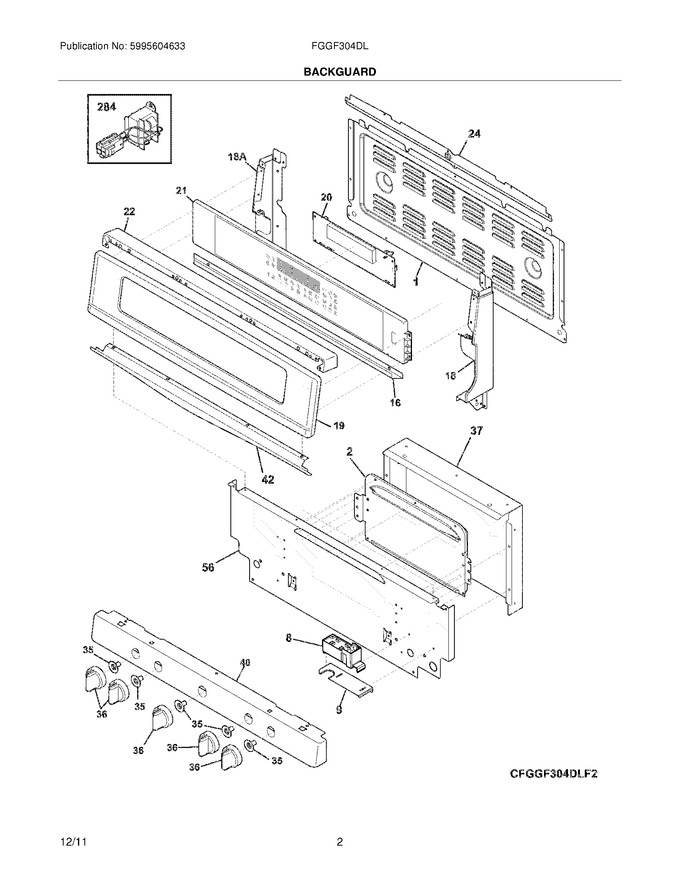

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314111		Panel,cover ,upper		Appelez-nous	-
2	318936501		Collector,flue Assembly		Appelez-nous	-
9	318387304		Bracket,spark Module		Appelez-nous	-
16	318571400		Brace,control Panel		Appelez-nous	-
18	318311934		End Cap,backsplash ,black ,rh				$ 55.39
19	318573506		Panel,control ,black		Appelez-nous	-
22	318413501		Cap,top ,black ,backguard				$ 64.44
24	318566201		Trim,back ,upper		Appelez-nous	-
35	318587800		Deflector,knob ,(5)		Appelez-nous	-
36	316564508		Knob,top Valve ,black ,(1)				$ 48.91
37	318572504		Box,deflector		Appelez-nous	-
40	318583610		Panel,manifold ,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	318534925		Shield,backguard ,black ,inner		Appelez-nous	-
18A	318311935		End Cap,backsplash ,black ,lh				$ 55.39
F20	316259502		Controller,electronic ,es610		Appelez-nous	-
F21	318566021		Timer Assembly,es610w5 ,black ,w/overlay		Appelez-nous	-
F284	316536100		Transformer			Immediately	$ 210.83
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
FNI	318572705		Harness,communication ,cntl To Relay		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
