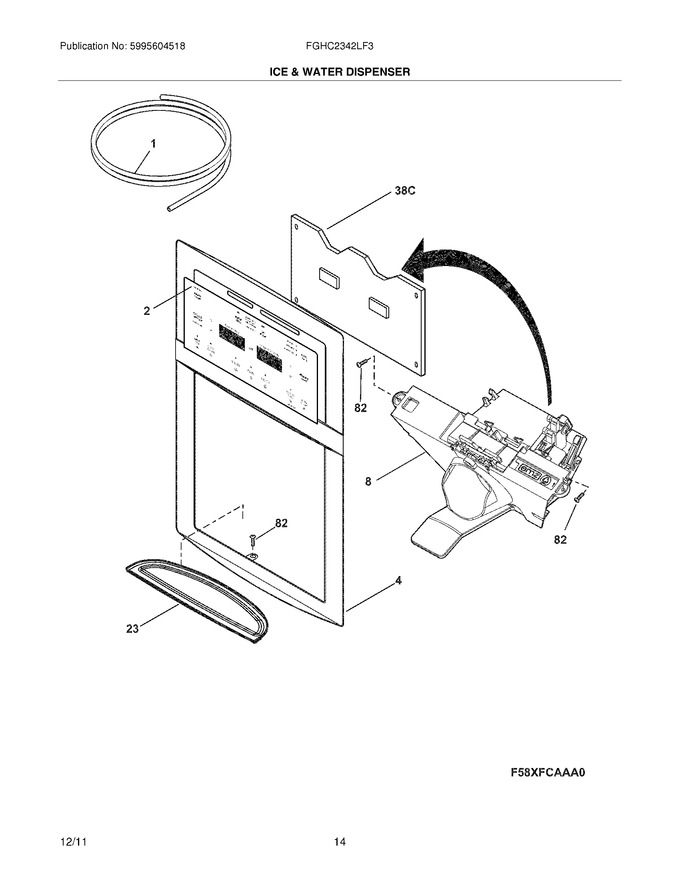

15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube,water ,60`` ,natural ,door			Immediately	$ 60.25
2	241973817		Switch Assembly,overlay ,black		Appelez-nous	-
4	241946809		Cover-module				$ 151.02
8	242074218		Module-dispenser   (Replaces: 242074206)				$ 273.77
23	241947007		Drip Tray		Appelez-nous	-
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
F38C	241973711		Board-control   (Replaces: 241973702)			Immediately	$ 347.34
NI	218976421		Tube-water Inlet,valve To Door				$ 20.56
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	218976429		Tube-water Inlet,5/16 - 97.50`` ,brown/tan				$ 40.40
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
