SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet

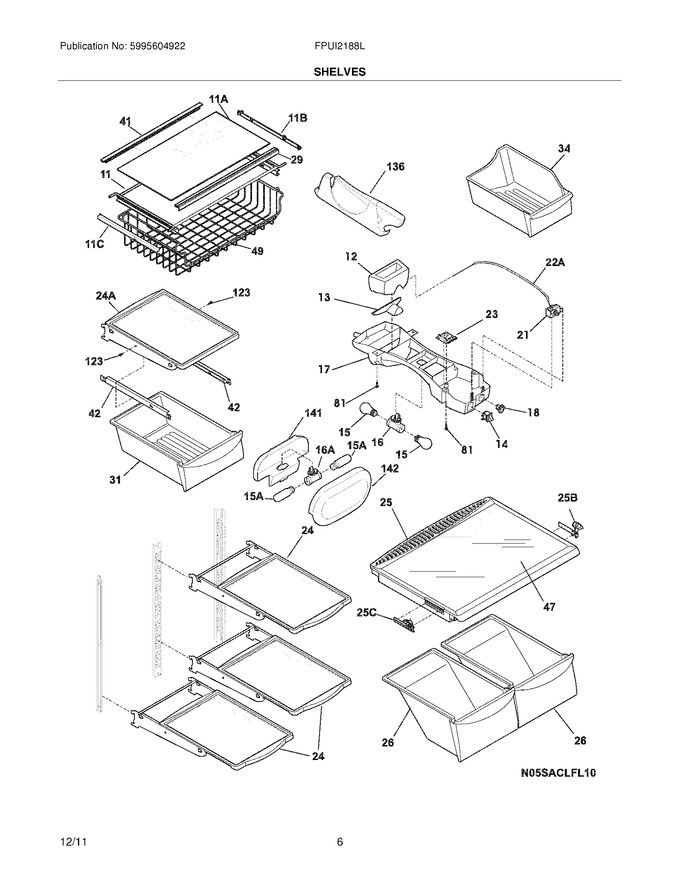

07 - Shelves


09 - System


11 - Ice Maker


12 - Wiring Schematic


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087803		Frame-shelf,full Width		Appelez-nous	-
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
17	240368105		Control Box   (Replaces: 240368104)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240350143		Shelf-``spill-safe``,cantilever ,sliding				$ 179.24
25	240364790		Cover-crisper Pan				$ 135.66
26	240343803		Pan-crisper,(2)			Immediately	$ 171.91
29	242088002		Trim-shelf,front		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
41	242111002		Trim-shelf,rear		Appelez-nous	-
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350609		Insert-pan Cover,glass			Immediately	$ 162.30
49	241833201		Basket-sliding,full Sliding ,wire ,frzr		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
136	241657701		Dispenser-can,white				$ 57.41
141	241562101		Shield-heat,mid Level				$ 66.57
142	241562202		Shield-light Mid Level				$ 76.23
11A	242087901		Glass-shelf,full Shelf		Appelez-nous	-
11B	241848701		Cover,hanger Rh ,wire Basket		Appelez-nous	-
11C	241848702		Cover,hanger Lh ,wire Basket		Appelez-nous	-
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white				$ 9.10
24A	240355261		Shelf-``spill-safe``,fixed				$ 168.53
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
F15A	241552802		Light Bulb			Immediately	$ 50.45
F16	240364201		Socket-light/lamp,dual				$ 100.50
F16A	241593901		Harness-wiring				$ 54.29
F16A	241622802		Socket-light,frz Light				$ 65.93
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 72.31
F23	242011003		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
FNI	242081702		Wiring Harness,control Box		Appelez-nous	-
NI	242028595		Energy Guide		Appelez-nous	-
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	218743613		Tape,aluminum ,3`` X 7``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
