SELECT A DIAGRAM
01 - Cabinet
02 - Cavity

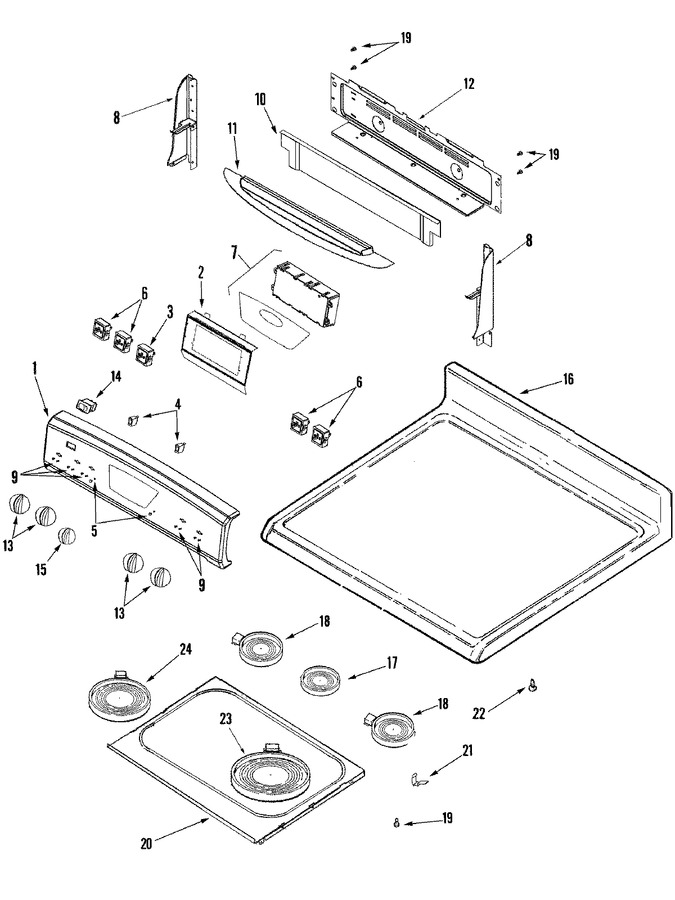

03 - Control Panel/top Assembly
04 - Door/drawer
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011423 | Panel, Backguard (blk) | 10 |
|
- | ||||
| 2 | 74008716 | Bracket, Clock | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | 74006589 | Switch, Infinite (warming) | 10 |
|
- | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 73.53 | |||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 74008644 | Clock/overlay (blk) | 10 |
|
- | ||||
| 8 | 74009023 | End Cap (lt-blk) | 10 |
|
$ 31.24 | ||||
| 8 | 74009022 | End Cap (rt-blk) | 10 |
|
- | ||||
| 9 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 10 | 74009444 | Shield, Vent | 10 |
|
- | ||||
| 11 | 74009202 | Shield, Heat Visor (blk) | 10 |
|
- | ||||
| 12 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 12 | 7002P361-60 | Insulation, Bottom (fiberglass) | 18 |
|
- | ||||
| 12 | 74008836 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 13 | 74008731 | Knob (blk) | 10 |
|
$ 67.30 | ||||
| 14 | 74008718 | Switch, Rocker (blk) | 10 |
|
$ 50.46 | ||||
| 15 | 74008892 | Knob (blk) | 10 |
|
$ 6.79 | ||||
| 16 | 74011396 | Top, Main Asy. (blk) | 10 |
|
- | ||||
| 17 | 74008898 | Element, Warming | 10 |
|
$ 73.51 | ||||
| 18 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 19 | W11233072 | Screw (Replaces: 74009538) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 74008900 | Bottom, Burner Box | 10 |
|
- | ||||
| 21 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 10 |
|
$ 10.51 | ||||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 23 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 10 |
|
Immediately | $ 204.83 | |||
| 24 | 74009082 | Element (12``) | 10 |
|
$ 199.46 |
