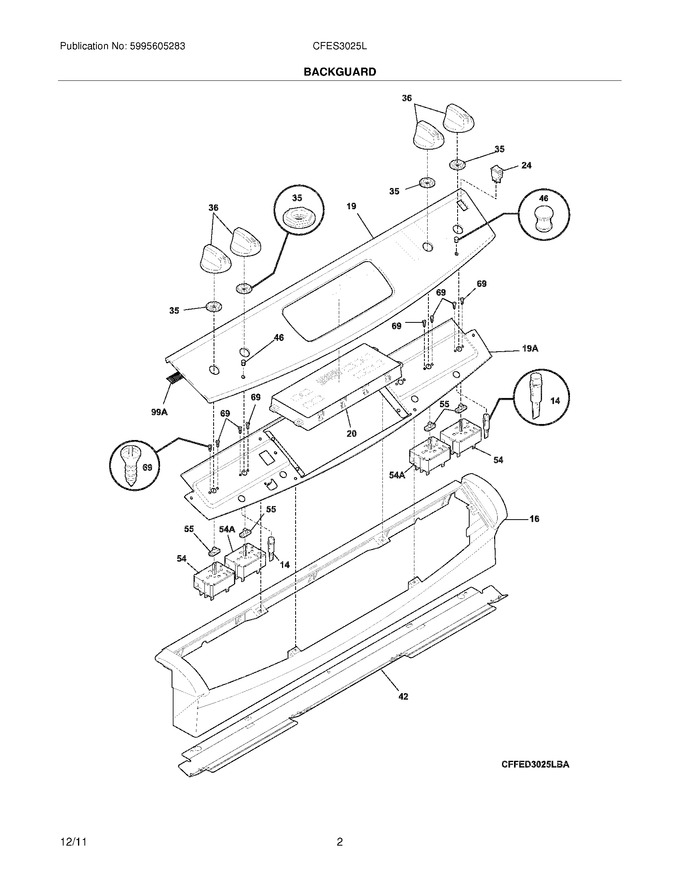

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
19	318235192		Panel,control ,white				$ 227.90
35	318183105		Support,glass ,black ,(4)				$ 21.37
36	316543809		Knob,control ,white				$ 44.14
42	318574701		Support,control Panel ,black				$ 62.69
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
69	5304480396		Screw,8-32 X 3/8`` ,(4)				$ 11.34
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	318414227		Clock/timer,electronic ,white ,es300				$ 209.58
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293830		Switch,infinite ,(2)			Immediately	$ 94.36
F54A	318293831		Switch,surface Element ,large			Immediately	$ 92.69
FNI	318228875		Harness,wiring ,main ,backguard		Appelez-nous	-
FNI	318231880		Harness,wiring ,jumper				$ 14.18
FNI	318224875		Harness,wiring ,timer				$ 80.33
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	318214523		Overlay,control ,white ,es300				$ 41.91

    View Diagram in Separate Window       Print Part List
