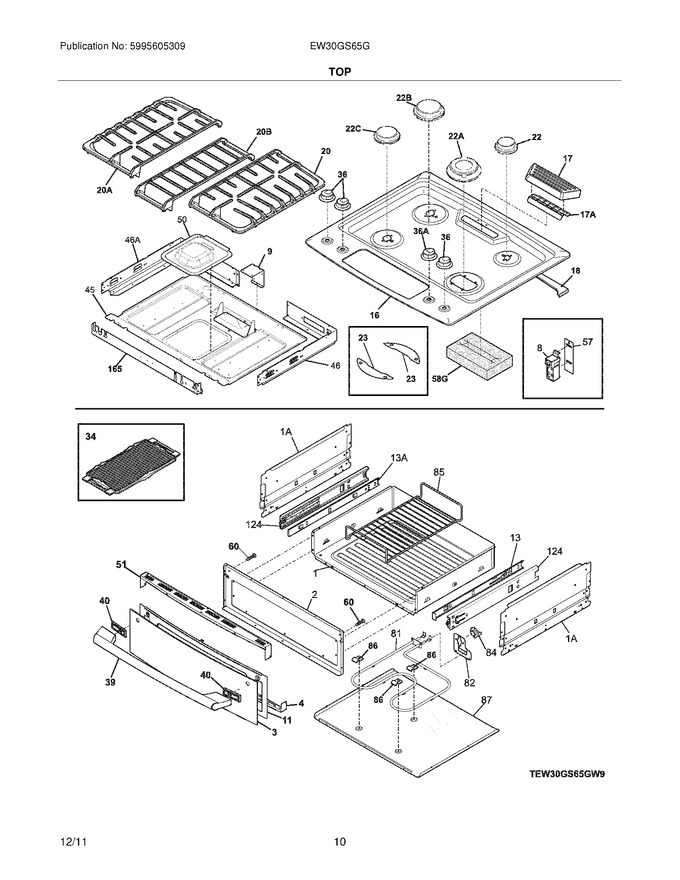

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304405		Drawer,body Assembly				$ 248.01
2	318391205		Panel,drawer ,inner		Appelez-nous	-
3	318904404		Glass,drawer ,white ,outer		Appelez-nous	-
4	318904903		Trim,door ,black ,lower				$ 31.87
9	318905500		Support,maintop		Appelez-nous	-
11	318385701		Frame,drawer ,outer				$ 343.25
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	318536550		Maintop Assembly,white ,w/support ,w/graphics		Appelez-nous	-
17	318905402		Cover,flue ,white		Appelez-nous	-
18	318906900		Support,deflector Box				$ 37.47
20	318909206		Grate,burner ,black ,rh				$ 310.17
22	316548600		Cap,burner ,5k ,black				$ 87.70
23	318406901		Plate,decorative ,stainless ,(2)		Appelez-nous	-
34	316534001		Griddle				$ 213.34
36	318905200		Knob,burner ,white ,(3)				$ 153.20
39	241881314		Handle,door ,white				$ 178.09
40	318902900		Spacer,handle ,white ,(2)				$ 18.46
45	318578701		Panel,burner Box ,bottom		Appelez-nous	-
46	318568200		Box,burner ,rh				$ 23.99
50	318578802		Panel,service ,fan		Appelez-nous	-
51	318904701		Trim,door ,black ,upper				$ 73.76
57	318295611		Panel,service				$ 15.12
60	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
82	318304500		Bracket,element ,warmer Drawer				$ 11.29
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318568301		Front Panel,burner Box		Appelez-nous	-
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
17A	318907401		Cover,flue		Appelez-nous	-
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 56.13
20A	318909207		Grate,burner ,black ,lh				$ 252.74
20B	318909403		Grate,burner ,black ,center				$ 257.24
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
36A	318905203		Knob,burner ,white ,dual		Appelez-nous	-
46A	318568201		Box,burner ,lh				$ 28.93
58G	318594402		Insulation,flue   (Replaces: 318285099)				$ 245.64
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 82.93
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
FNI	318532147		Ground Wire,w/terminal		Appelez-nous	-
NI	318534403		Gasket,maintop			Immediately	$ 59.16
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403102)				$ 49.62
NI	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
NI	318199748		Wiring Harness,drawer				$ 35.86
NI	5304463977		Bumper,base ,(2)				$ 10.28
NI	318531701		Spacer,(2)				$ 12.05
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304463974		Screw,thermostat ,6-20 X 5/8 ,(2)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
