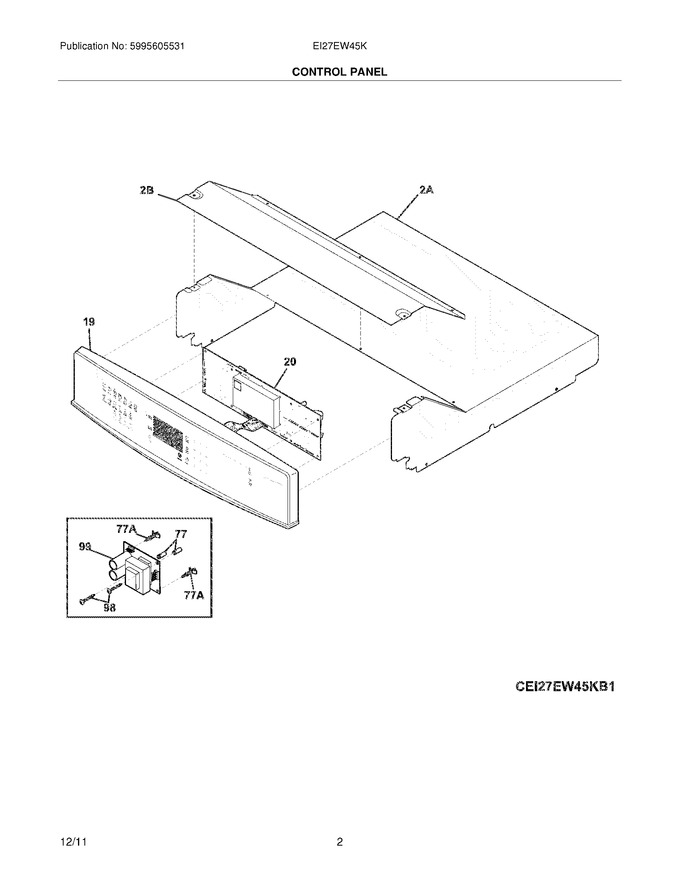

01 - Cover
03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 98 | 5303297477 | Screw,6-20 X 1 1/4 |
|
$ 15.17 | |||||
| 2A | 318257301 | Shield,oven Top |
|
- | |||||
| 2B | 318260101 | Cover,box |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F19 | 318280488 | Control Panel Assy.,glass ,black ,w/membrane |
|
- | |||||
| F20 | 316576627 | Controller,electronic ,es630 |
|
- | |||||
| F99 | 316535201 | Board,power Supply ,8v |
|
$ 349.42 | |||||
| FNI | 318572746 | Harness,wiring ,relay Board ,cntl To Relay |
|
- | |||||
| FNI | 318572745 | Harness,wiring ,timer |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- |
