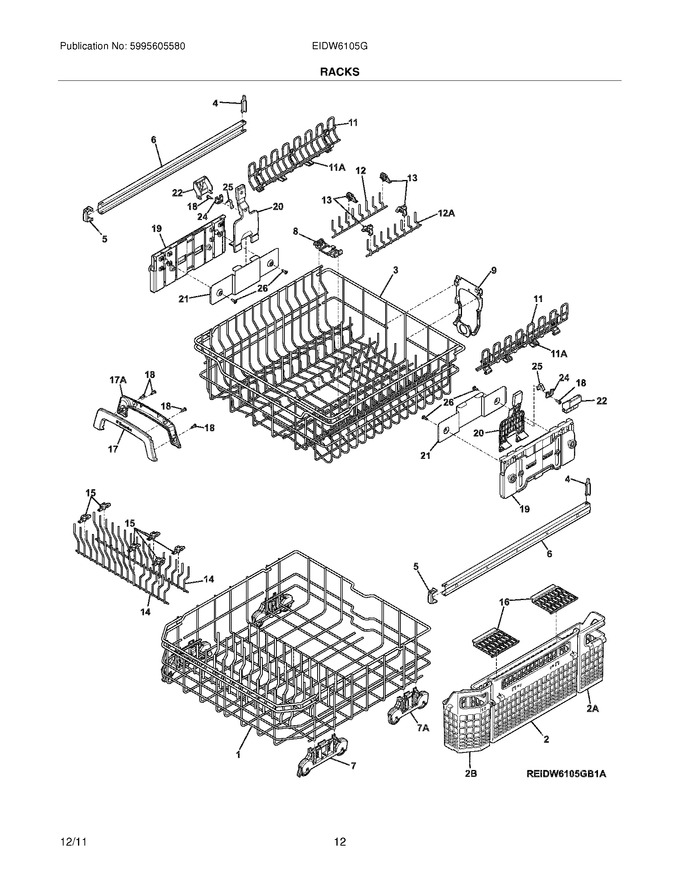

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154786601		Rack Assembly,lower				$ 231.58
2	154632401		Basket,silverware ,main ,center				$ 53.92
3	154653701		Rack Assembly,upper				$ 304.79
4	154510902		Clip,guide Rail ,rear ,(2)				$ 17.31
5	154510805		Cap,guide Rail ,front ,(2)				$ 13.74
6	154510401		Guide Rail,upper Rack ,(2)				$ 28.35
7	154671301		Roller Assembly,lower Rack ,front ,(2)				$ 41.40
8	154610501		Bracket,spray Arm ,middle ,mounting				$ 16.75
9	154613402		Clip,manifold Mtg ,back				$ 98.46
11	154629002		Shelf,cup ,upper Rack ,(2)				$ 94.65
12	154629302		Fence,fold Down ,lh Center ,upper Rack				$ 18.57
13	154629402		Clip,fold Down Fence ,upper Rack ,(4)				$ 4.67
14	154720903		Fence,fold Down ,lower Rack ,(2) ,full Length				$ 23.78
15	154428403		Bracket,fence ,lower Rack ,(18)			Immediately	$ 5.08
16	154631401		Lid,main Basket ,side ,(2)				$ 70.67
17	154629503		Handle,front ,upper Rack ,electrolux				$ 104.27
18	154629701		Screw,upper Rack				$ 9.66
19	154673601		Plate Assembly,adjustment Mech ,lh Outer,upper Rack				$ 167.27
19	154673701		Plate Assembly,adjustment Mech ,rh Outer,upper Rack				$ 194.67
20	154655101		Actuator Pad,assembly ,upper Rack ,(2) ,mechanical Adj				$ 90.93
21	154630101		Plate,adjustment Mtg. ,inner ,(2) ,upper Rack				$ 44.15
22	154630301		Housing,adjustment Mech ,upper Rack ,(2)				$ 13.71
24	154655201		Clamp,actuator ,upper Rack ,(2) ,adjustment Mech				$ 4.50
25	154630201		Spring,adjustment Mech ,upper Rack ,(2)				$ 10.97
26	154673501		Screw,6 Lobe Recess ,no.10 Hi Lo				$ 10.29
11A	154629102		Clip,cup Shelf ,upper Rack ,(2)				$ 18.27
12A	154654302		Fence,fold Down ,rh Center ,upper Rack				$ 17.54
17A	154629601		Handle,back ,upper Rack				$ 80.22
2A	154632601		Basket,silverware ,side ,rear				$ 55.81
2B	154632701		Basket,silverware ,side ,front				$ 58.80
7A	154689501		Roller Assembly,lower Rack ,rear ,(2)				$ 49.40
