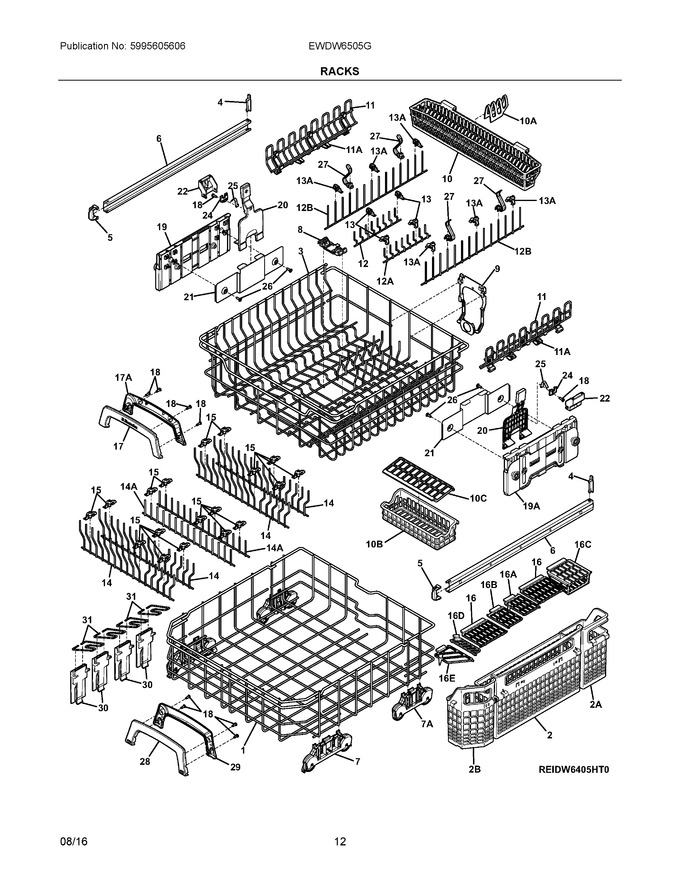

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154625401		Rack Assembly, Lower				$ 279.51
2	154632401		Basket, Silverware, Main, Center				$ 53.92
3	154625301		Rack Assembly, Upper				$ 329.96
4	154510902		Clip, Guide Rail, Rear, (2)				$ 17.31
5	154510805		Cap, Guide Rail, Front, (2)				$ 13.74
6	154510401		Guide Rail, Upper Rack, (2)				$ 28.35
7	154671301		Roller Assembly, Lower Rack, Front, (2)				$ 41.40
8	154610501		Bracket, Spray Arm, Middle, Mounting				$ 16.75
9	154613402		Clip, Manifold Mtg, Back				$ 98.46
10	154581203		Basket Assy, Knife Holder				$ 44.36
11	154629002		Shelf, Cup, Upper Rack, (2)				$ 94.65
12	154629302		Fence, Fold Down, Lh Center, Upper Rack				$ 18.57
13	154629402		Clip, Fold Down Fence, Upper Rack, (4)				$ 4.67
14	154720903		Fence, Fold Down, Lower Rack, (2), Full Length				$ 23.78
15	154428403		Bracket, Fence, Lower Rack, (18)			Immediately	$ 5.08
16	154631401		Lid, Main Basket, Side, (2)				$ 70.67
17	154629503		Handle, Front, Upper Rack, Electrolux				$ 104.27
18	154629701		Screw, Upper Rack				$ 9.66
19	154673701		Plate Assembly, Adjustment Mech, Rh Outer, Upper Rack				$ 194.67
20	154655101		Actuator Pad, Assembly, Upper Rack, (2), Mechanical Adj				$ 90.93
21	154630101		Plate, Adjustment Mtg., Inner, (2), Upper Rack				$ 44.15
22	154630301		Housing, Adjustment Mech, Upper Rack, (2)				$ 13.71
24	154655201		Clamp, Actuator, Upper Rack, (2), Adjustment Mech				$ 4.50
25	154630201		Spring, Adjustment Mech, Upper Rack, (2)				$ 10.97
26	154673501		Screw, 6 Lobe Recess, #10 Hi Lo				$ 10.29
27	154528803		Clip, Cup, (2)				$ 11.29
28	154631503		Handle, Lower Rack, Front				$ 88.10
29	154631601		Handle, Lower Rack, Back				$ 75.18
30	154632301		Clip, Holder, Champagne, (2)				$ 11.97
31	154632201		Holder, Champagne Glass, (2)		Appelez-nous	-
10A	154581303		Holder, Snap In				$ 28.04
10B	154632101		Tray, Utility		Appelez-nous	-
10C	154652001		Lid, Utility Tray				$ 15.28
11A	154629102		Clip, Cup Shelf, Upper Rack, (2)				$ 18.27
12A	154654302		Fence, Fold Down, Rh Center, Upper Rack				$ 17.54
12B	154652102		Fence, Fold Down, Upper Rack				$ 23.42
13A	154652202		Clip, Fence, Upper Rack				$ 9.22
14A	154781802		Fence, Fold Down, Lower Rack, (4)				$ 22.58
16A	154632501		Lid, Main Basket, Lh Center		Appelez-nous	-
16B	154651701		Lid, Main Basket, Rh Center		Appelez-nous	-
16C	154649001		Lid, Basket, Knife		Appelez-nous	-
16D	154651801		Lid, Basket, Chopsticks		Appelez-nous	-
16E	154634901		Lid, Basket, Rh Side		Appelez-nous	-
17A	154629601		Handle, Back, Upper Rack				$ 80.22
19A	154673601		Plate Assembly, Adjustment Mech, Lh Outer, Upper Rack				$ 167.27
2A	154632601		Basket, Silverware, Side, Rear				$ 55.81
2B	154632701		Basket, Silverware, Side, Front				$ 58.80
7A	154689501		Roller Assembly, Lower Rack, Rear, (2)				$ 49.40
