View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Upper Frame/tub
05 - Motor & Pump
06 - Lower Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

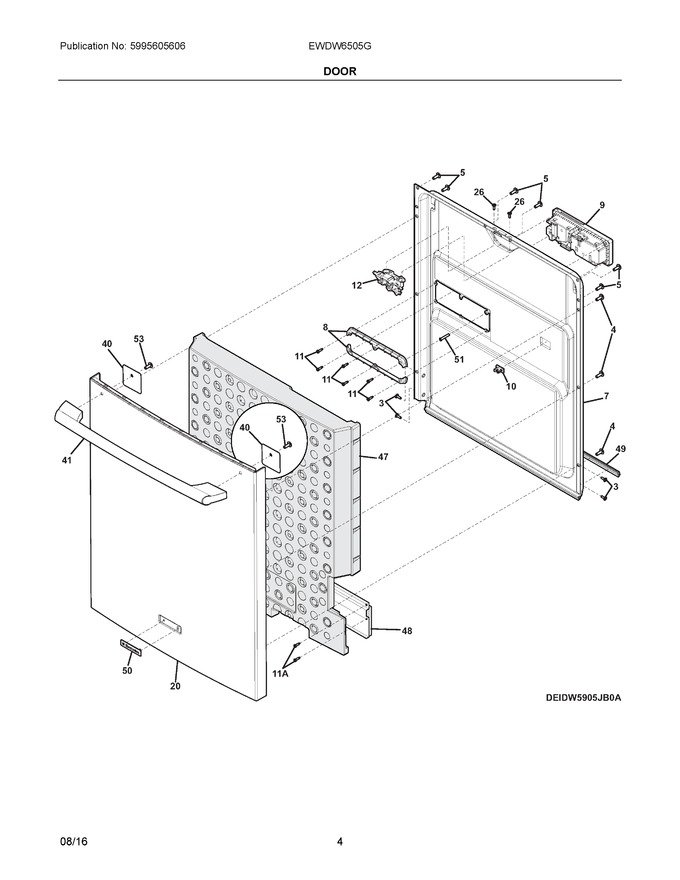

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 154518201 | Screw, 6 Lobe Recess, #10-32, (4) |
|
$ 7.88 | |||||
| 4 | 154603801 | Screw, Low Profile, Truss, (6) |
|
$ 15.75 | |||||
| 5 | 154603701 | Screw, Ph, #10-16 Hi-lo, (6), 6 Lobe |
|
$ 9.77 | |||||
| 7 | 154840001 | Liner Assembly, Door, Inner, W/mastic-wiper |
|
$ 228.69 | |||||
| 8 | 154670901 | Bracket, Dispenser Mtg., (2) |
|
$ 9.29 | |||||
| 9 | 5304507354 | Dispenser, Det/rinse Aid, W/reed Switch (Replaces: 154574405) |
|
Immediately | $ 77.60 | ||||
| 10 | 154633501 | Clip, Wiring Harness |
|
- | |||||
| 11 | 154625702 | Screw, Ft Ph 6 Lobe, #8-18 |
|
$ 7.98 | |||||
| 12 | 154671402 | Latch Assembly, Door, W/shield |
|
Immediately | $ 96.88 | ||||
| 20 | 154603501 | Door, Outer, Stainless |
|
$ 316.31 | |||||
| 26 | 154519101 | Screw, Phlps Hd, #10-16 Hi Lo, (4) |
|
- | |||||
| 40 | 154603401 | Plate, Handle Support, (2) |
|
Immediately | $ 16.30 | ||||
| 41 | 241881305 | Handle, Door, Stainless |
|
$ 200.29 | |||||
| 47 | 154672001 | Moisture Barrier, Assembly, Door, W/data Sheet |
|
$ 39.32 | |||||
| 48 | 154670301 | Reinforcement, Assembly, Door |
|
$ 47.79 | |||||
| 49 | 154782301 | Gasket, Door Bottom |
|
- | |||||
| 50 | 241873301 | Nameplate, Electrolux, Stainless (Replaces: 154658705) |
|
$ 11.15 | |||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 53 | 154633601 | Screw, Handle Mtg., (2) |
|
$ 14.89 | |||||
| 11A | 154518301 | Screw, 6 Lobe Recess, #8-18 |
|
$ 8.61 |
