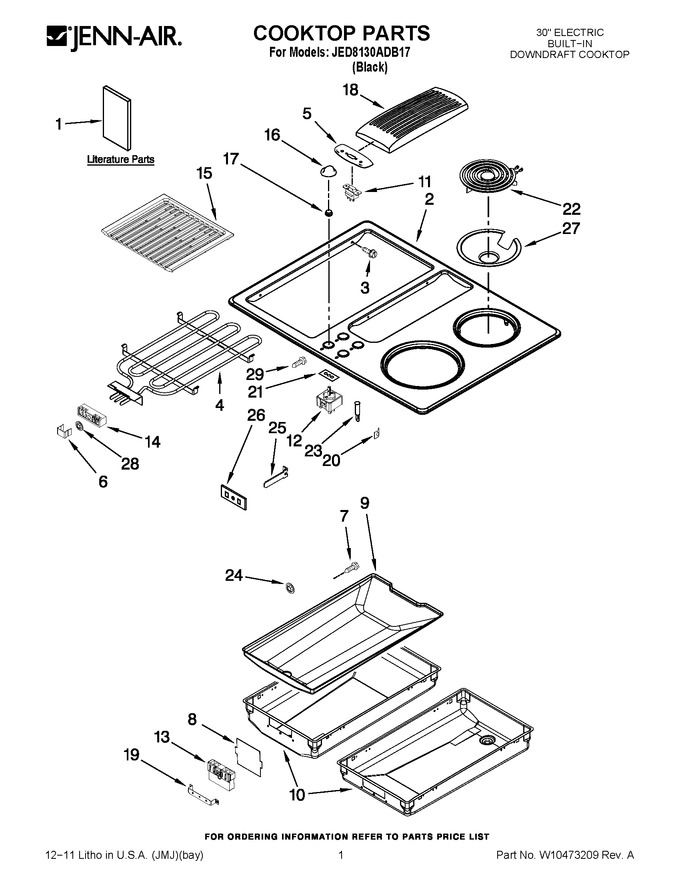

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10298937 | Installation Instructions |
|
- | |||||
| 1 | W10411781 | Wiring Diagram |
|
- | |||||
| 1 | W10298939 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2002F169-09 | Top, Main (black) |
|
$ 239.38 | |||||
| 3 | W11233072 | Screw (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 4 | WPW10310263 | Element, Grill (Replaces: W10310263) |
|
$ 293.68 | |||||
| 5 | WPW10298872 | Trim, Control Fan (black) (Replaces: W10298872) |
|
$ 135.28 | |||||
| 6 | 7422P002-60 | Clip, Shunt |
|
- | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 9.79 | |||||
| 8 | 7003P130-60 | Block, Ceramic |
|
$ 29.24 | |||||
| 9 | 4009F087-19 | Pan, Grill Insert |
|
$ 105.43 | |||||
| 10 | 3401F050-19 | Pan, Grill |
|
$ 107.69 | |||||
| 11 | 12001452 | Switch, Fan (relay, Fan) (Replaces: 7428P030-60) |
|
$ 179.93 | |||||
| 11 | WPW10331927 | Switch, Fan (black) (Replaces: W10331927) |
|
$ 92.24 | |||||
| 12 | WPW10391800 | Switch, Infinite (Replaces: W10391800) |
|
Immediately | $ 159.20 | ||||
| 13 | WPY702434 | Receptacle (Replaces: 7408P047-60) |
|
Immediately | $ 96.61 | ||||
| 14 | WPY708730 | Block, Terminal (Replaces: 7401P061-60) |
|
Immediately | $ 87.44 | ||||
| 15 | 7518P118-60 | Grate, Grill |
|
$ 129.60 | |||||
| 16 | WP7737P193-60 | Knob, Control (black) (Replaces: 7737P193-60) |
|
$ 17.01 | |||||
| 17 | 7103P164-60 | Palnut |
|
- | |||||
| 18 | 7772P046-60 | Grille, Air (black) |
|
$ 102.11 | |||||
| 19 | 5708D092-60 | Bracket, Receptacle |
|
- | |||||
| 20 | Y708862 | Clip, Ind. Light (Replaces: 7103P148-60) |
|
$ 13.08 | |||||
| 21 | 7212P030-60 | Gasket, Switch |
|
- | |||||
| 22 | WPW10345411 | Element, Coil (rf) (Replaces: W10345411) |
|
$ 150.07 | |||||
| 22 | WP3191455 | Element, Coil (rr) (Replaces: W10345414) |
|
$ 133.85 | |||||
| 23 | W10354968 | Indicator, Light (black) |
|
$ 55.41 | |||||
| 24 | Y708862 | Nut (Replaces: 7103P148-60) |
|
$ 13.08 | |||||
| 25 | Y708572 | Spade, Contact (Replaces: 7405P131-60) |
|
Immediately | $ 11.34 | ||||
| 26 | 7003P082-60 | Insulator |
|
- | |||||
| 27 | 715878 | Bowl, Burner (rf) (Replaces: 7725P068-60) |
|
Immediately | $ 21.16 | ||||
| 27 | 715877 | Bowl, Burner (rr) (Replaces: 7725P067-60) |
|
Immediately | $ 19.39 | ||||
| 28 | Y708862 | Nut, Speed (Replaces: 7103P148-60) |
|
$ 13.08 | |||||
| 29 | WP7101P309-60 | Screw,8-32x7/32 (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 |
