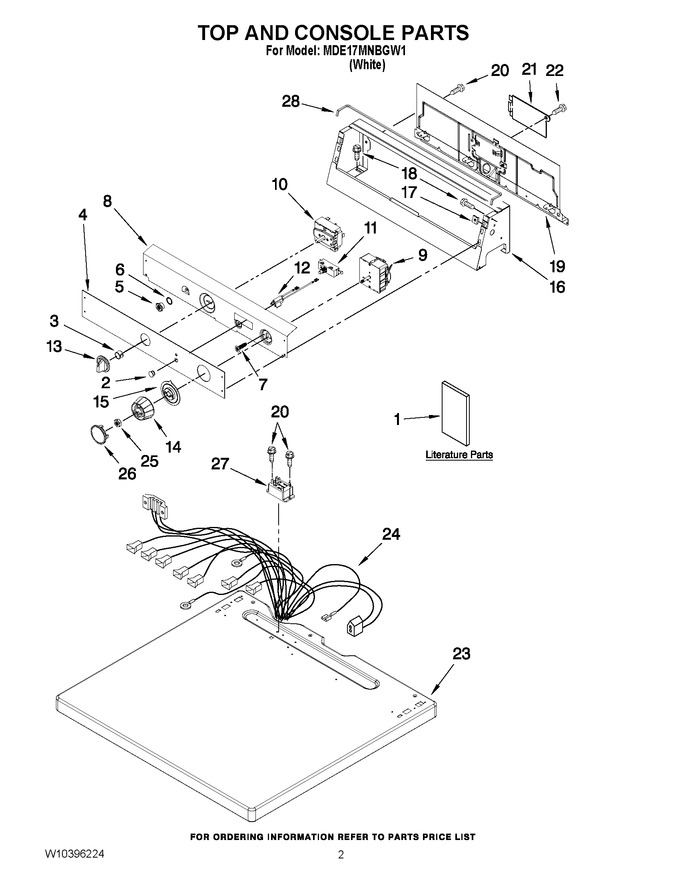

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10297242		Instructions Installation		Appelez-nous	-
1	W10396192		Wiring Diagram		Appelez-nous	-
2	WPW10133502		Lens, Pilot Light Amber   (Replaces: W10133502)				$ 11.58
3	W10140928		Clip, Knob				$ 5.22
4	W10135191		Facia / Overlay		Appelez-nous	-
5	W10146429		Nut, 8-32 X 3/8		Appelez-nous	-
6	WPW10139799		Washer   (Replaces: W10139799)				$ 8.32
7	W10139100		Screw, 8-32 X 1/2				$ 11.15
8	W10124216		Bracket, Control		Appelez-nous	-
9	WPW10157945		Timer, Dryer   (Replaces: W10157945)				$ 273.56
10	W10327100		Switch, Cycle Selection				$ 184.35
11	WPW10149462		Switch, Push-to-start   (Replaces: W10181931)				$ 60.77
12	W10139459		Lamp-indicator 230 V.		Appelez-nous	-
13	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
14	W11232017		Knob, Control   (Replaces: W10133505)				$ 11.13
15	W10133506		Skirt, Dial				$ 17.06
16	W10235158		Console   (Replaces: W10205150)		Appelez-nous	-
17	WPW10131123		Nut, No.8 U-type   (Replaces: W10131123)				$ 6.94
18	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
19	W10121161		Panel, Rear (upper)		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
21	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
22	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
23	WPW10136704		Top   (Replaces: W10136704)				$ 234.39
24	W10386329		Harness, Main		Appelez-nous	-
25	W10155650		Nut, 1/4-28 X				$ 12.03
26	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76
27	WP1188043		Relay, Heater 230v   (Replaces: 1188043)				$ 99.12
28	WPW10157932		Foam Seal   (Replaces: W10157932)			Immediately	$ 7.25

    View Diagram in Separate Window       Print Part List
