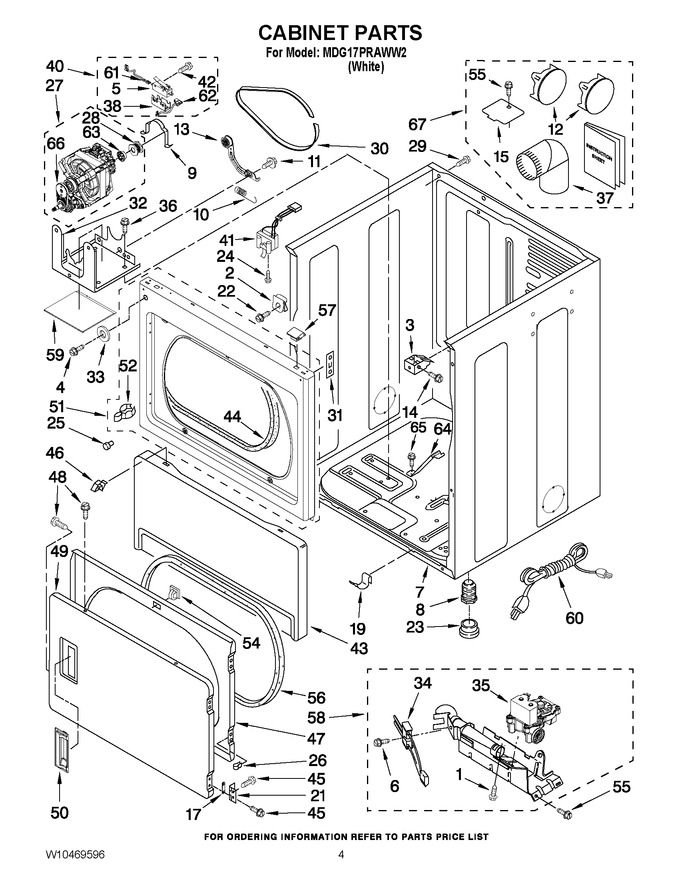

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 6.47 | ||||
| 2 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 4 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.25 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 89.24 | |||||
| 6 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 6.75 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 13 | WPW10344192 | Idler Assembly (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 17 | W10191265 | Plug, Hinge Screw |
|
$ 39.85 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 21 | WPW10279703 | Hinge And Pin (Replaces: W10279703) |
|
$ 65.00 | |||||
| 22 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.26 | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 24 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 25 | 693152 | Bumper |
|
$ 9.86 | |||||
| 26 | 3389249 | Nut, ``u`` |
|
- | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10139766) |
|
Immediately | $ 371.89 | ||||
| 28 | WP8066184 | Pulley (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 29 | W10850756 | Screw (Replaces: 8533974) |
|
$ 6.98 | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 34 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 35 | W11676916 | Valve Gas 60 Hz. (complete) (Replaces: W10299939) |
|
$ 226.06 | |||||
| 36 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 37 | 279731 | 4``-90° Elbow |
|
- | |||||
| 38 | 8564011 | Bracket, Switch |
|
$ 16.35 | |||||
| 40 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 23.76 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 50.08 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 6.31 | |||||
| 43 | WP3406797 | Panel, Toe (Replaces: 697215) |
|
$ 214.50 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 258.32 | |||||
| 48 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 49 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 233.43 | |||||
| 50 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 68.18 | ||||
| 51 | W10242810 | Front Panel (Replaces: W10192882) |
|
$ 324.96 | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 54 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 55 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 56 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 57 | WP345670 | Lock-top (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 58 | W11676916 | Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown) (Replaces: W10400668) |
|
$ 226.06 | |||||
| 59 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 19.96 | |||||
| 60 | W11222083 | Cord, Power (Replaces: W10440461) |
|
$ 108.53 | |||||
| 61 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 62 | 8539892 | Wire-motor To-belt-switch |
|
- | |||||
| 63 | WP3393657 | Belt Restrainer (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 64 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 65 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 66 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 |
