SELECT A DIAGRAM

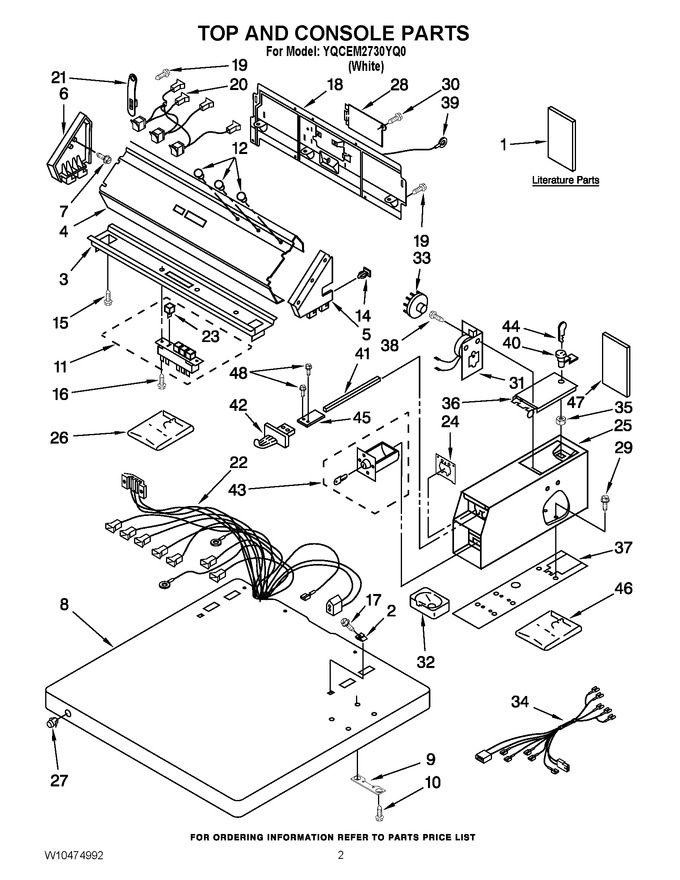

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184582		Instructions, Installation		Appelez-nous	-
1	8533570		Wiring Diagram		Appelez-nous	-
1	W10474992		Service Parts List		Appelez-nous	-
2	WP357213		Nut, Push-in   (Replaces: 357213)				$ 6.65
3	3361029		Bracket, Control				$ 34.04
4	W10470746		Panel, Control		Appelez-nous	-
5	8316516		Cap, End (r.h.)		Appelez-nous	-
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.20
8	3954665		Top				$ 145.66
9	3347825		Plate, Mounting		Appelez-nous	-
10	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
11	WPW10330137		Switch, Pushbutton   (Replaces: W10330137)			Immediately	$ 305.60
12	WP3348109		Lens Light (amber)   (Replaces: 3348109)			Immediately	$ 11.26
14	689559		Nut, Push-in		Appelez-nous	-
15	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
16	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 9.79
17	8281182		Screw 8-18 X 1-1/4				$ 5.33
18	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 256.84
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
20	8316640		Light, Indicator Assembly				$ 60.24
21	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.00
22	8529877		Harness, Main				$ 47.63
23	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 305.60
24	279950		Plate, Chute Adapter (includes Illus. 32)   (Replaces: 3954761)			Immediately	$ 26.00
25	WPW10461200		Case, Meter   (Replaces: 8316527)			Immediately	$ 344.90
26	WP3406965		Kit, Vertical 8-coin (includes Illus. 42-43 & 44-47   (Replaces: 3954807)			Immediately	$ 358.66
27	387371		Lock, Plug				$ 11.36
28	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 115.52
29	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 6.41
30	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
31	W11451464		Timer   (Replaces: W10045440)			Immediately	$ 277.04
32	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 66.78
33	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 31.07
33	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 7.49
34	3401682		Harness, Timer				$ 75.67
35	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
36	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
37	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
38	339805		Screw, 10-32 X 3/16				$ 12.05
39	W10110977		Ground Wire		Appelez-nous	-
40	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 36.42
41	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 67.13
42	W11126319		Slide Mechanism (vertical 8-coin)   (Replaces: 8316520)			Immediately	$ 279.80
43	W11190039		Money Box W/lock (includes Key)   (Replaces: 8316525)			Immediately	$ 160.25
44	N/P		Key (service Door) (when Ordering, Specify Vendor And Key Number)		Appelez-nous	-
45	3390424		Extension   (Replaces: 8316523)			Immediately	$ 61.43
46	8316524		Kit, Decal		Appelez-nous	-
47	8316532		Installation Instructions Coin Kit		Appelez-nous	-
48	WP3400029		Screw, 10-32 X 3/8   (Replaces: 3400029)			Immediately	$ 6.98
NI	8316265		Dollar Vend Inserts (not Shown) 25¢		Appelez-nous	-
NI	W11312584		Dollar Vend Inserts (not Shown) Blank   (Replaces: 8316264)				$ 28.26

    View Diagram in Separate Window       Print Part List
