01 - Body

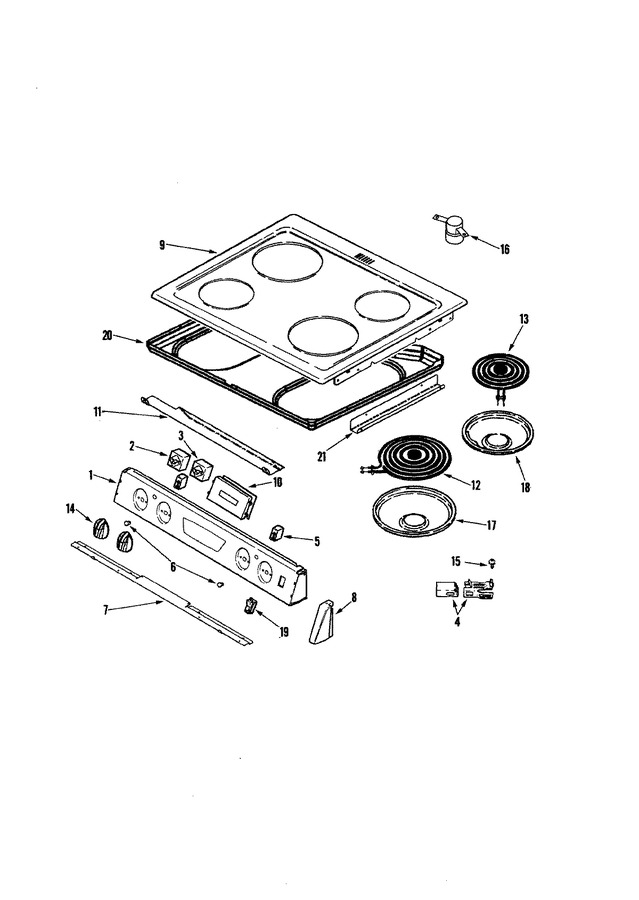

02 - Control Panel/top Asy


03 - Door/drawer


04 - Oven/base


05 - Supplemental Information


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010888		Panel, Control (wht)	10	Appelez-nous	-
2	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
3	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
3	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
4	12001676		Receptacle Assy.	10		Immediately	$ 28.45
5	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
6	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
7	74004785		Support, Manifold Panel	10	Appelez-nous	-
8	74004822		Cap, End (wht-lt)	10	Appelez-nous	-
8	74004821		Cap, End (wht-rt)	10	Appelez-nous	-
9	2002M200-81		Top, Main (wht)   (Replaces: 74010895)	10	Appelez-nous	-
10	74010689		Clock/overlay (wht)	10	Appelez-nous	-
11	74010846		Shield, Control	10	Appelez-nous	-
12	WPW10345410		Element, Surface (8``)   (Replaces: 74007156)	10		Immediately	$ 165.96
13	WPW10259868		Element, Surface (6``)   (Replaces: 74007157)	10		Immediately	$ 112.28
14	74008733		Knob (wht)	10			$ 6.65
15	WP7101P498-60		Screw (6abx.25-zn)   (Replaces: 74003357)	10			$ 6.74
16	74005759		Tube, Vent (upr)	10	Appelez-nous	-
17	W10291024		Bowl, Drip (8`` Gry-solid)   (Replaces: 74003441)	10		Immediately	$ 49.90
18	W10291024		Bowl, Drip (6`` Gry-solid)   (Replaces: 74003440)	10		Immediately	$ 49.90
19	74008717		Switch, Rocker (wht)	10			$ 72.68
20	74006046		Bottom, Burner Box	10	Appelez-nous	-
21	3801F881-51		Bracket, Burner Box   (Replaces: 74010894)	10	Appelez-nous	-
