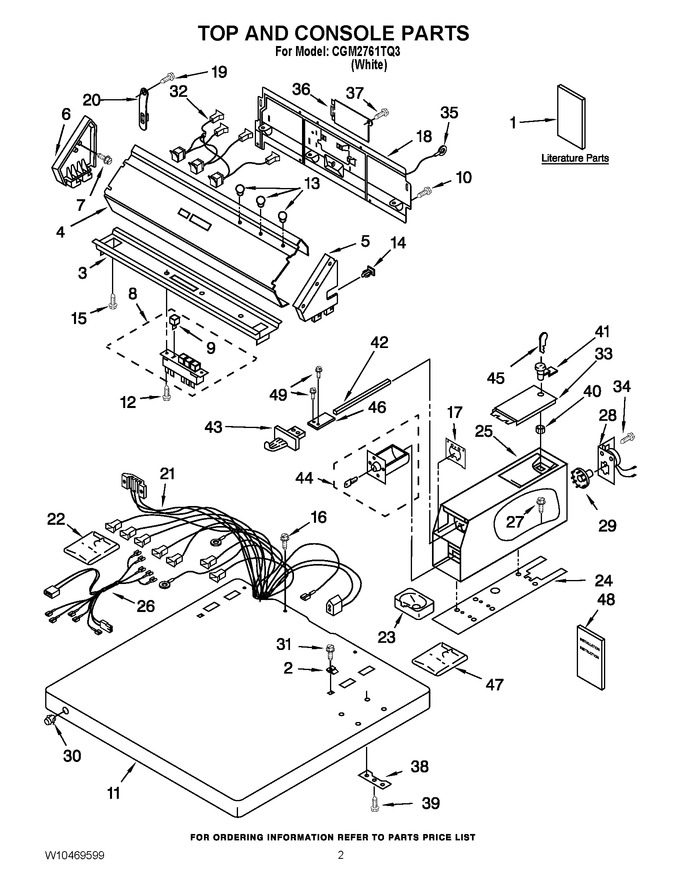

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184582		Instructions, Installation		Appelez-nous	-
1	W10469599		Repair Parts List		Appelez-nous	-
1	8533569		Wiring Diagram		Appelez-nous	-
2	WP357213		Nut, Push-in   (Replaces: 357213)				$ 6.65
3	3361029		Bracket, Control				$ 34.04
4	8316634		Panel, Control				$ 256.07
5	8316516		Cap, End (r.h.)		Appelez-nous	-
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.20
8	WPW10330137		Switch, Pushbutton   (Replaces: W10330137)			Immediately	$ 305.60
9	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 305.60
10	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.47
11	3954665		Top				$ 145.66
12	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 9.79
13	WP3348109		Lens, Amber   (Replaces: 3348109)			Immediately	$ 11.26
14	689559		Nut, Push-in		Appelez-nous	-
15	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
16	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
17	279950		Plate, Chute Adapter (includes Illus. 25)   (Replaces: 3954761)			Immediately	$ 26.00
18	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 256.84
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
20	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.00
21	WP8529870		Harness, Main   (Replaces: 8529870)				$ 237.41
22	WP3406965		Kit, Vertical 8-coin (includes Illus. 41-43-44 45-46-47 & 48)   (Replaces: 3954807)			Immediately	$ 358.66
23	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 66.78
24	WP3954812		Cushion, Case   (Replaces: 3954812)				$ 27.99
25	WPW10461200		Case, Meter   (Replaces: 3406994)			Immediately	$ 344.90
26	3401126		Harness, Timer		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 6.41
28	W11451464		Timer, (includes 4-pin Cam)   (Replaces: W10045440)			Immediately	$ 277.04
29	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 31.07
29	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 7.49
30	387371		Lock, Plug				$ 11.36
31	8281182		Screw 8-18 X 1-1/4				$ 5.33
32	8316640		Lights, Indicator Assembly				$ 60.24
33	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
34	339805		Screw, 10-32 X 3/16				$ 12.05
35	W10110977		Ground Wire		Appelez-nous	-
36	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
37	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
38	3347825		Plate, Mounting		Appelez-nous	-
39	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
40	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
41	W11315637		Security Lock/key & Cam Assembly   (Replaces: 8316526)			Immediately	$ 36.42
42	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 67.13
43	W11126319		Slide Mechanism (vertical 8-coin)   (Replaces: 8316520)			Immediately	$ 279.80
44	W11190039		Money Box W/lock (includes Key)   (Replaces: 8316525)			Immediately	$ 160.25
45	N/P		Key (service Door) (when Ordering, Specify Vendor And Key Number)		Appelez-nous	-
46	3390424		Extension   (Replaces: 8316523)			Immediately	$ 61.43
47	8316524		Kit, Decal		Appelez-nous	-
48	8316532		Installation Instructions Coin Kit		Appelez-nous	-
49	WP3400029		Screw, 10-32 X 3/8   (Replaces: 3400029)			Immediately	$ 6.98
NI	8316265		Dollar Vend Inserts (not Shown) 25¢		Appelez-nous	-
NI	W11312584		Dollar Vend Inserts (not Shown) Blank   (Replaces: 8316264)				$ 28.26
