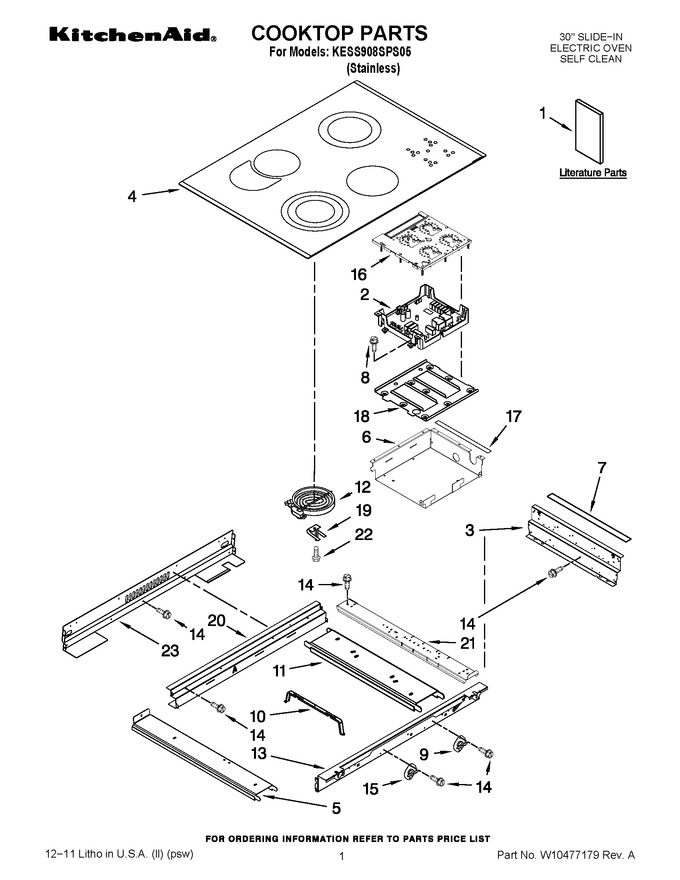

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10075750		Instructions, Installer		Appelez-nous	-
1	W10246119		Installation Instructiions		Appelez-nous	-
1	W10246111		Use & Care Guide		Appelez-nous	-
1	W10112131		Tech Sheet		Appelez-nous	-
1	9763467		Easy Set Guide		Appelez-nous	-
1	9757680		Anti-tip Instructions		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	W10181438		Module, Appliance Manager				$ 375.72
3	9761422		Frame, Cooktop Side				$ 67.87
4	W10110273		Cooktop (black/stainless)		Appelez-nous	-
5	9757824		Rail, Element Side				$ 60.29
6	9761638		Box, Tap Touch		Appelez-nous	-
7	W10076030		Gasket				$ 78.51
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
10	9756821		Support, Wiring		Appelez-nous	-
11	9757825		Rail, Element Center		Appelez-nous	-
12	W10248260		Element, Surface ((lf)2300/1600/800w)				$ 154.48
12	WP8523045		Element, Surface (rf/1500w)   (Replaces: 8523045)				$ 269.30
12	W10248257		Element, Surface (lr (1800/1000w))				$ 150.74
12	WPW10245533		Element, Surface ((rr)2000/1000w)   (Replaces: W10245533)				$ 223.04
13	9761423		Frame, Cooktop Front				$ 43.33
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	341196		Thermostat				$ 33.17
16	WP9757063		Module, Tap Touch   (Replaces: 9757063)			Immediately	$ 374.99
17	9761663		Seal, Heat				$ 56.53
18	9757815		Support, Module				$ 43.94
19	9759094		Spring,locator				$ 6.34
20	9761768		Frame, Cooktop Rear				$ 73.35
21	9763517		Rail, Element				$ 62.80
22	WP486754		Screw   (Replaces: 246119)				$ 6.75
23	9761723		Cover, Cooktop Rear				$ 65.23
