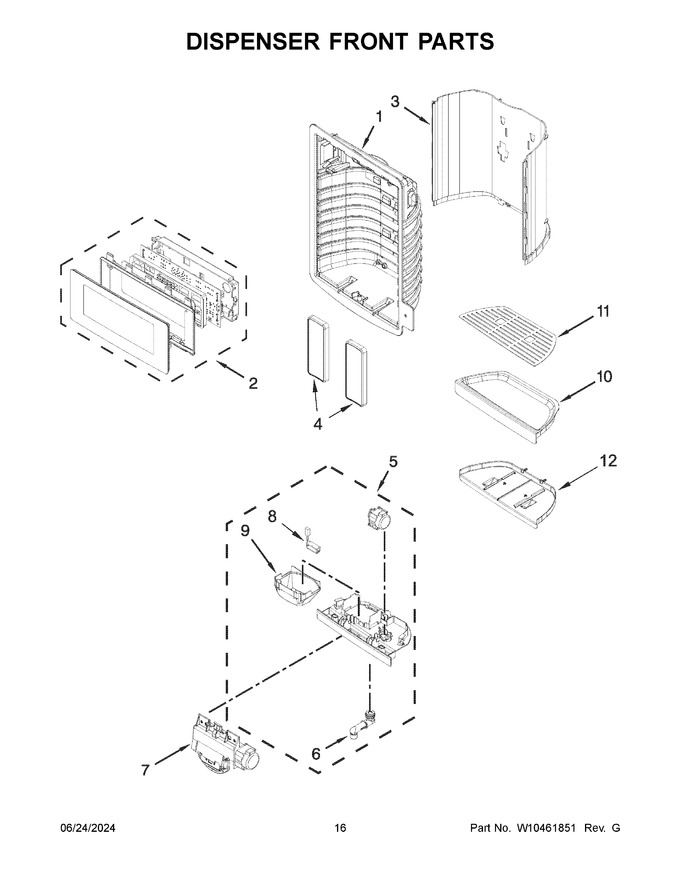

09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
1	ARI0820F7799426DB23CC858392159B72FE		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10878993		Assembly, User Interface (silver)   (Replaces: W10559672)				$ 432.88
3	W10486345		Wall, Dispenser False (white)		Appelez-nous	-
4	W10317250		Assembly, Pad (white)				$ 289.66
5	WPW10347634		Assembly, Separator   (Replaces: W10347634)				$ 123.26
6	WP2305235		Spigot   (Replaces: W10317267)			Immediately	$ 132.36
7	W11130210		Assembly, Ice Door   (Replaces: W10347633)				$ 144.50
8	W11290115		Assembly, Led   (Replaces: W10238083)				$ 76.01
9	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
10	W10347140		Tray, Dispenser (white)		Appelez-nous	-
11	WPW10542708		Grate, Drip Tray   (Replaces: W10542708)				$ 71.59
12	W10347142		Insert, Drip Tray (white)		Appelez-nous	-
10A	W10400884		Tray, Dispenser (black)				$ 62.24
10B	WPW10400887		Tray, Dispenser (grey)   (Replaces: W10400887)				$ 66.23
12A	W10400889		Insert, Drip Tray (black)				$ 45.01
12B	W10402269		Insert, Drip Tray (grey)			Immediately	$ 62.19
2A	W10878991		Assembly, User Interface (black)   (Replaces: W10559674)				$ 368.65
3A	W10486344		Wall, Dispenser False (black)				$ 120.60
3B	WPW10486346		Wall, Dispenser False (grey)   (Replaces: W10486346)				$ 138.80
4A	W11561037		Assembly, Pad (black)   (Replaces: W10317253)				$ 74.64
4B	WPW10346924		Assembly, Pad (grey)   (Replaces: W10346924)			Immediately	$ 260.69
