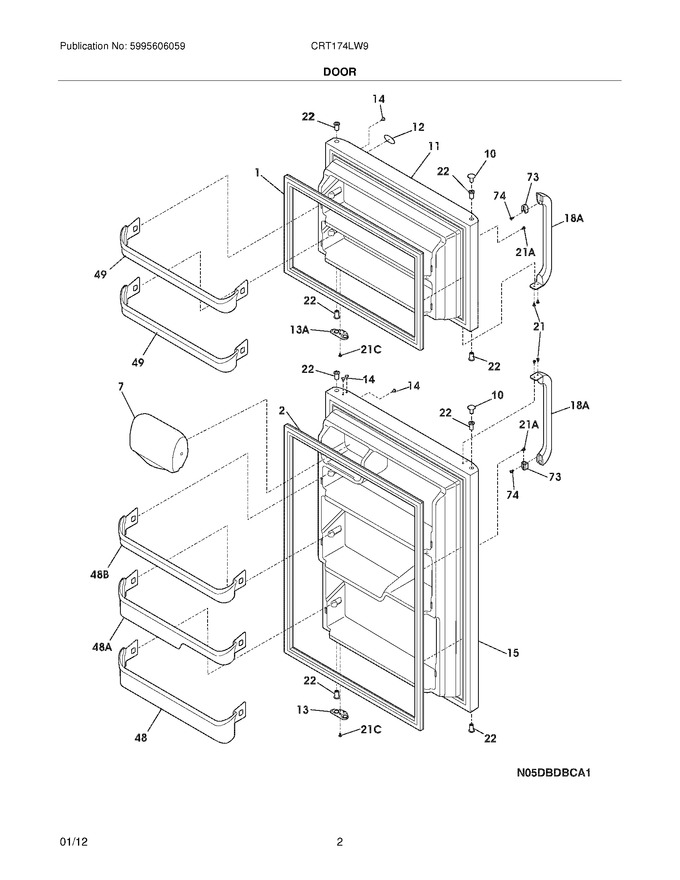

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240420101 | Door,frzr ,white |
|
- | |||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 18.20 | ||||
| 15 | 240420201 | Door,refr ,white |
|
$ 379.42 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 48 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 49 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 73 | 218396701 | Block-handle Mtg,dovetail |
|
- | |||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312414 | Door Stop,white ,frzr |
|
$ 19.13 | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240383901 | Bin-door,2-liter |
|
Immediately | $ 56.87 | ||||
| 48B | 240383801 | Bin-door,gallon |
|
Immediately | $ 55.90 | ||||
| F1 | 241872501 | Gasket-frzr Door,white ,magnetic |
|
Immediately | $ 134.19 | ||||
| F2 | 241872504 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 183.39 |
