SELECT A DIAGRAM

01 - Cover


03 - Backguard

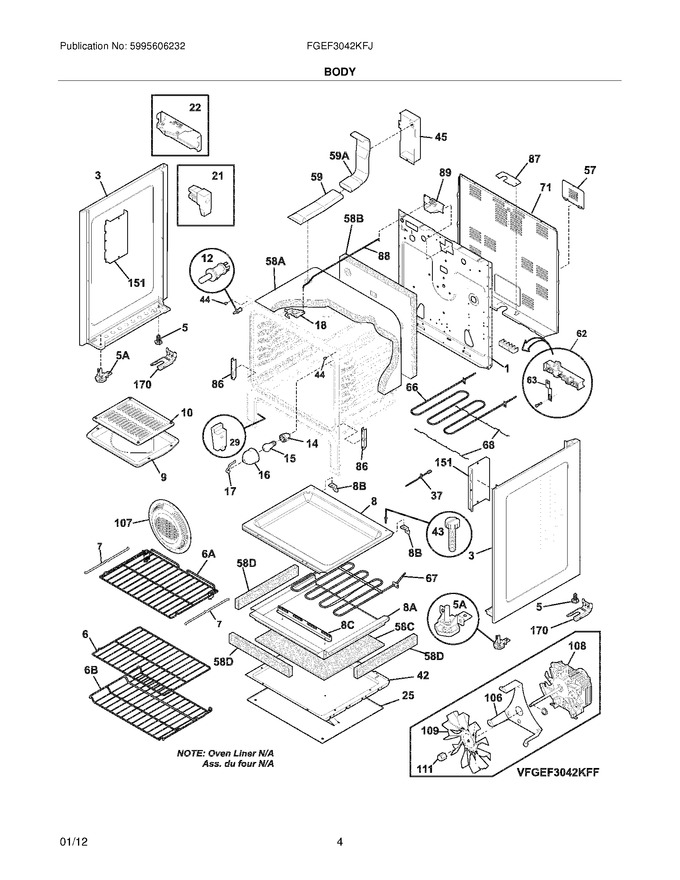

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401802		Panel,main Back		Appelez-nous	-
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven			Immediately	$ 103.48
7	316546300		Link,coupler ,(2) ,auto Rack			Immediately	$ 22.75
8	316505602		Panel,oven Bottom   (Replaces: 316505601)				$ 158.06
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
22	316286300		Bracket-bodyside,(2)				$ 17.72
25	316406200		Shield,heat ,lower				$ 87.97
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
42	316400701		Shield,wool ,lower				$ 162.30
43	316282700		Screw,w/washer ,8-18				$ 9.93
44	316517600		Spacer,oven Door				$ 12.05
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316283600		Cover,access				$ 12.50
59	316208401		Vent Tube,assembly ,w/catalyst				$ 194.14
63	316542600		Plate,grounding Strap		Appelez-nous	-
67	316505500		Element,bake ,3000w			Immediately	$ 259.25
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 8.75
71	316283204		Shield,rear Wall   (Replaces: 316283200)				$ 56.12
86	316441300		Receptacle,hinge				$ 21.97
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406503		Insulation,oven Back				$ 112.69
58C	316509600		Insulation,lower Shield		Appelez-nous	-
58D	316509700		Insulation,oven Bottom				$ 60.25
59A	316208304		Tube,oven Vent ,upper				$ 80.09
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	316577800		Rack,oven ,auto   (Replaces: 316556500)				$ 243.43
6B	316496205		Rack,oven				$ 134.67
8A	316505701		Base,bake Element				$ 244.44
8B	316506000		Bracket,support ,oven Bottom ,(2)				$ 4.55
8C	316505801		Support,element				$ 25.48
F108	316256100		Motor-fan			Immediately	$ 211.18
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F170	316541700		Template,anti-tip		Appelez-nous	-
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F62	5303935271		Terminal Block Kit				$ 73.56
F66	316203301		Element,broil   (Replaces: 316200600)			Immediately	$ 182.39
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316580280		Harness,wiring ,main   (Replaces: 316580220)				$ 188.83
NI	316279600		Screw,bracket ,stiffener ,(4)				$ 12.05
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316542200		Insulator		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw,8a ,1``				$ 5.67
