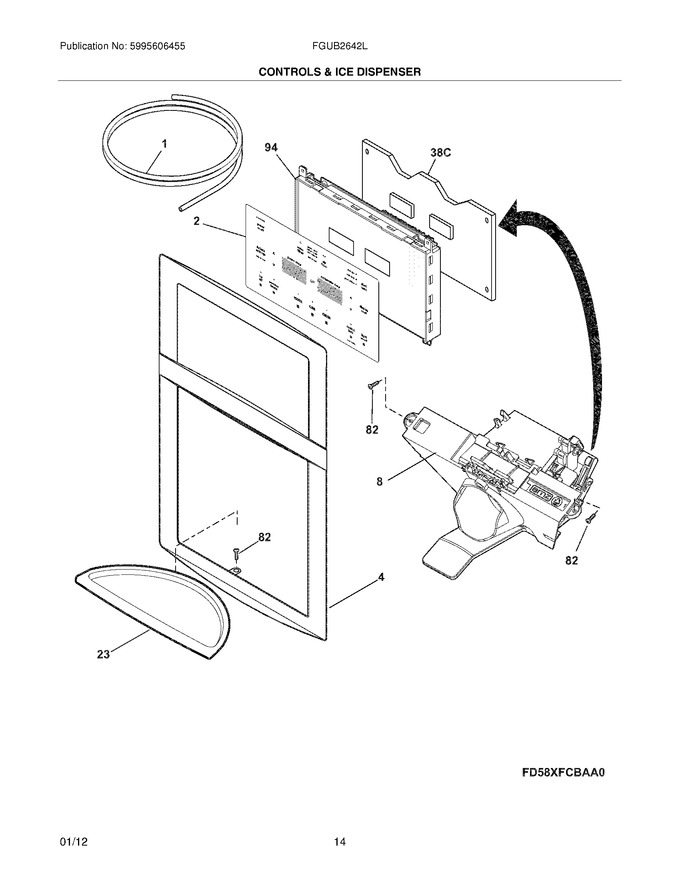

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 4 | 242089602 | Cover-module,gray (Replaces: 242089603) |
|
$ 80.39 | |||||
| 8 | 242074216 | Module-dispenser (Replaces: 242074204) |
|
Immediately | $ 255.86 | ||||
| 23 | 242034004 | Drip Tray,gray |
|
$ 110.67 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 94 | 242034101 | Housing-control |
|
$ 52.34 | |||||
| F2 | 242166901 | Switch,membrane |
|
$ 168.69 | |||||
| F38C | 241973711 | Board-control |
|
Immediately | $ 347.34 | ||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| FNI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 241964704 | Tube-water,1/4 - 24`` ,green |
|
$ 17.48 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 242220204 | Tube-water,5/16 - 68`` ,brown/tan (Replaces: 218976432) |
|
Immediately | $ 40.32 | ||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920103) |
|
Immediately | $ 60.67 |
