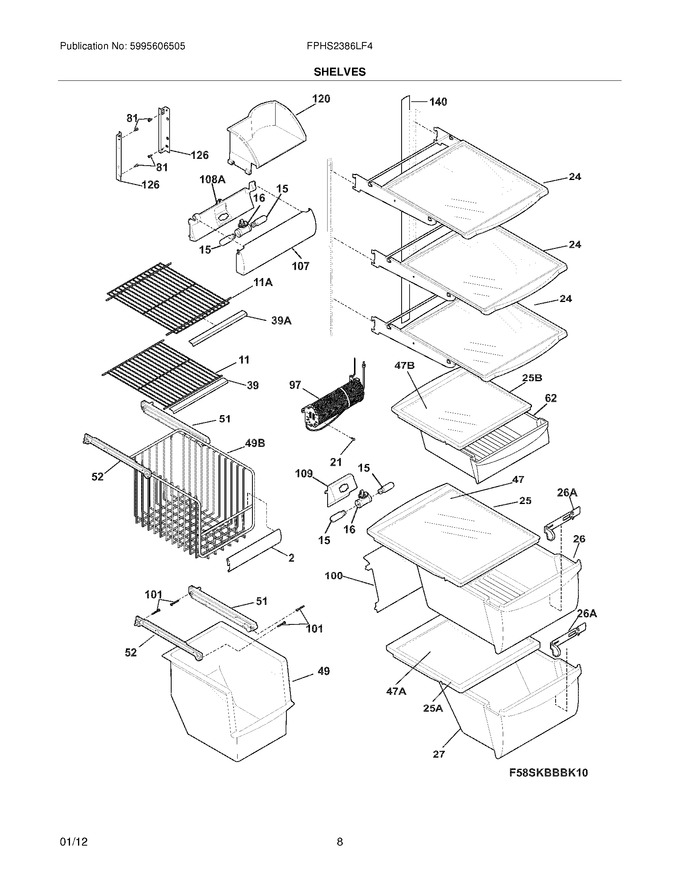

SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510609		Trim-basket		Appelez-nous	-
11	241657601		Shelf,flip Up ,wire				$ 79.48
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355277		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350142)				$ 213.87
25	241974201		Cover-crisper Pan,upper				$ 94.98
26	240354723		Pan-crisper,upper			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354826)				$ 167.69
39	240430705		Trim-shelf,front				$ 60.43
47	240350613		Insert-pan Cover,glass   (Replaces: 241992910)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	241974401		Pan-meat			Immediately	$ 149.50
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326303		Cover-water Tank				$ 61.28
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753501		Shield-light,refr				$ 43.89
109	241513202		Base-crisper Light Socket				$ 65.21
120	240342901		Shelf-ice Cream				$ 39.69
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
25A	241974301		Cover-crisper Pan,lower				$ 88.46
25B	241973101		Cover-meat Pan			Immediately	$ 87.77
26A	240351101		Control-humidity			Immediately	$ 43.95
39A	240430701		Trim-shelf,front				$ 69.30
47A	240350614		Insert-pan Cover,glass				$ 145.60
47B	241992909		Insert-pan Cover,glass				$ 117.66
49B	240530503		Basket-sliding,upper ,full				$ 220.14
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
F16	241622802		Socket-light,frz Light				$ 65.93
FNI	241987601		Harness-wiring				$ 113.76
NI	242028589		Energy Guide		Appelez-nous	-
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241781601		Seal-return Air				$ 9.10
NI	241868101		Air Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
