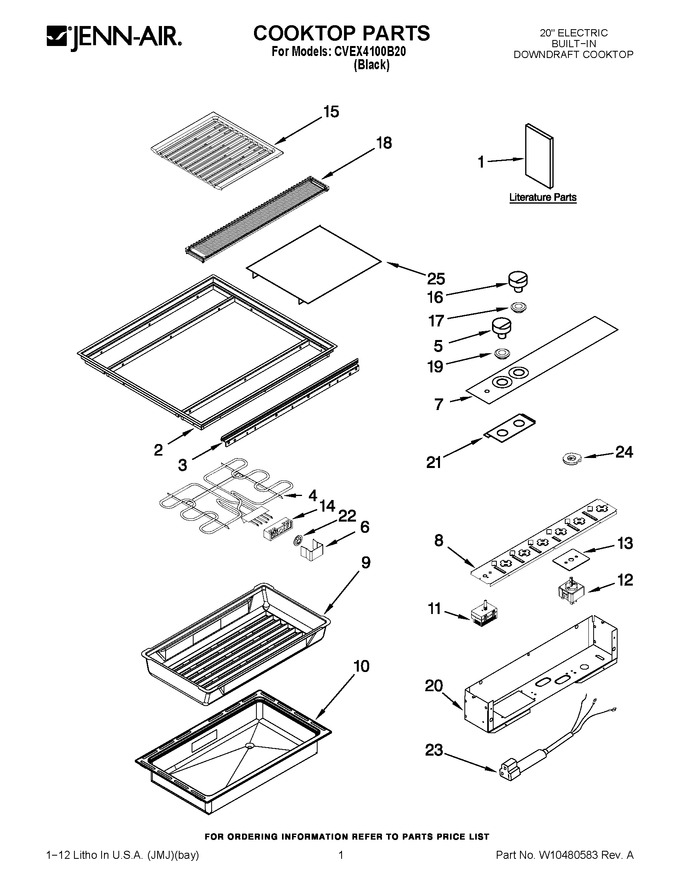

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10411775		Wiring Diagram		Appelez-nous	-
1	W10421936		Use & Care Guide		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10421939		Installation Instructions		Appelez-nous	-
2	7746P057-60		Top, Main		Appelez-nous	-
3	3801F428-80		Bracket, Panel				$ 32.22
4	7406P228-60		Element, Surface   (Replaces: W10314688)				$ 308.33
5	W11715914		Knob, Fan (black)   (Replaces: W10410738)			Immediately	$ 36.14
6	7422P002-60		Clip, Shunt		Appelez-nous	-
7	WPW10410742		Panel, Control (black)   (Replaces: W10410742)				$ 250.35
8	3605F285-51		Plate, Switch		Appelez-nous	-
9	4009F083-60		Liner, Grill				$ 98.12
10	3401F037-19		Pan, Grill				$ 91.34
11	7403P833-60		Switch, Fan		Appelez-nous	-
12	WPW10391800		Switch, Infinite   (Replaces: W10391800)			Immediately	$ 159.20
13	WP71002569		Gasket, Switch   (Replaces: 7201P077-60)			Immediately	$ 9.06
14	WPY708730		Block, Terminal   (Replaces: 7401P061-60)			Immediately	$ 87.44
15	7518P044-60		Grate, Grill		Appelez-nous	-
16	WP706035		Knob, Control (black)   (Replaces: 7737P068-60)				$ 18.45
17	8008P061-60		Grommet (black)				$ 7.82
18	7772P004-60		Grille, Air (black)		Appelez-nous	-
19	8008P057-60		Grommet, Fan		Appelez-nous	-
20	4005F691-51		Box, Control		Appelez-nous	-
21	7730P017-60		Lens, Light		Appelez-nous	-
22	Y708862		Nut   (Replaces: 7103P148-60)				$ 13.08
23	7402P097-60		Cord, Power		Appelez-nous	-
24	7422P006-60		Box, Light		Appelez-nous	-
25	5700D510-60		Cover, Grill		Appelez-nous	-
