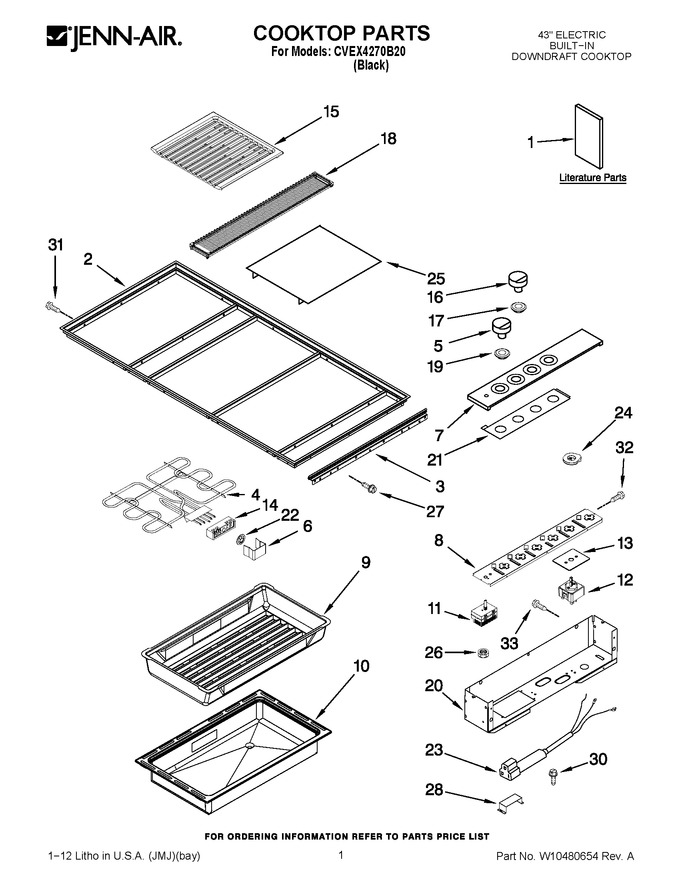

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10421936 | Use & Care Guide Instructions |
|
- | |||||
| 1 | W10421939 | Installation Instructions |
|
- | |||||
| 1 | W10411777 | Wiring Diagram |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | 7746P053-60 | Top, Main |
|
- | |||||
| 3 | 3801F428-80 | Bracket, Panel |
|
$ 32.22 | |||||
| 4 | 7406P228-60 | Element, Surface (Replaces: W10314688) |
|
$ 308.33 | |||||
| 5 | W11715914 | Knob, Fan (black) (Replaces: W10410738) |
|
Immediately | $ 36.14 | ||||
| 6 | 7422P002-60 | Clip, Shunt |
|
- | |||||
| 7 | WPW10416499 | Panel, Control (black) (Replaces: W10416499) |
|
$ 285.64 | |||||
| 8 | 3605F285-51 | Plate, Switch |
|
- | |||||
| 9 | 4009F083-60 | Liner, Grill |
|
$ 98.12 | |||||
| 10 | 3401F037-19 | Pan, Grill |
|
$ 91.34 | |||||
| 11 | 7403P833-60 | Switch, Fan |
|
- | |||||
| 12 | WPW10391800 | Switch, Infinite (Replaces: W10391800) |
|
Immediately | $ 159.20 | ||||
| 13 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 14 | WPY708730 | Block, Terminal (Replaces: 7401P061-60) |
|
Immediately | $ 87.44 | ||||
| 15 | 7518P044-60 | Grate, Grill |
|
- | |||||
| 16 | WP706035 | Knob, Control (black) (Replaces: 7737P068-60) |
|
$ 18.45 | |||||
| 17 | 8008P061-60 | Grommet (black) |
|
$ 7.82 | |||||
| 18 | 7772P004-60 | Grille, Air (black) |
|
- | |||||
| 19 | 8008P057-60 | Grommet, Fan |
|
- | |||||
| 20 | 4005W692-51 | Box, Control |
|
- | |||||
| 21 | 7730P015-60 | Lens, Light |
|
- | |||||
| 22 | Y708862 | Nut (Replaces: 7103P148-60) |
|
$ 13.08 | |||||
| 23 | 7402P097-60 | Cord, Power |
|
- | |||||
| 24 | 7422P006-60 | Box, Light |
|
- | |||||
| 25 | 5700D510-60 | Cover, Grill |
|
- | |||||
| 26 | 7103P177-60 | Nut, 3/8-32 Hex |
|
- | |||||
| 27 | WP90767 | Screw, 8ab-18x.37 (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 28 | 4005F529-51 | Cover, Wire Harness |
|
- | |||||
| 30 | W11233072 | Screw, 8-18 X.38 (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 31 | WPY706189 | Screw, 8-18 X.38 (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 32 | W11206744 | Screw, 6ab X1/4 (Replaces: 7101P394-60) |
|
$ 12.20 | |||||
| 33 | WP71001171 | Screw, 10-32 X.50 (Replaces: 7101P460-60) |
|
$ 6.26 |
