SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts

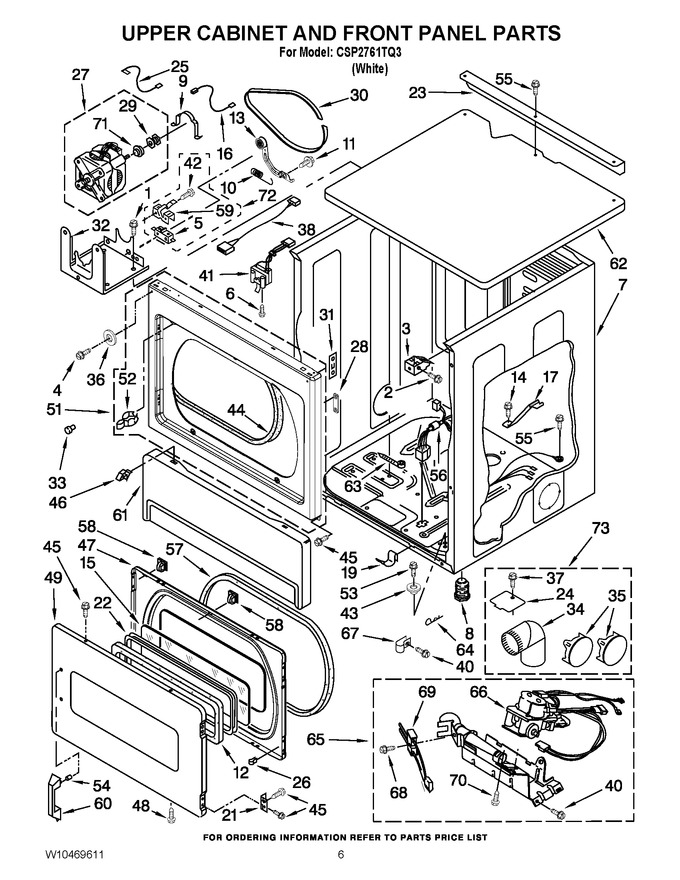

03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.62
2	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 13.11
3	3391846		Clip, Front Panel				$ 19.99
4	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.67
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 55.21
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
7	3978859		Cabinet (upper)		Appelez-nous	-
8	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 76.96
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	3392915		Gasket, Window				$ 58.46
13	WPW10344193		Idler Assembly   (Replaces: W10344193)			Immediately	$ 79.16
14	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
15	3392918		Window		Appelez-nous	-
16	W10167612		Wire, Belt Switch				$ 12.08
17	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
21	WPW10279703		Hinge And Pin   (Replaces: W10279703)				$ 68.25
22	3392914		Frame, Window		Appelez-nous	-
23	3979115		Bracket, Angle		Appelez-nous	-
24	WPW10354249		Plate Cover (bottom Exhaust)   (Replaces: 3394331)				$ 8.47
25	3398948		Wire, Jumper				$ 58.19
26	3389249		Nut, ``u``		Appelez-nous	-
27	W10841144		Motor Assembly (60 Hz.)   (Replaces: 8538264)			Immediately	$ 268.44
28	W10191265		Plug, Hinge Hole Screw				$ 41.84
29	WP8066184		Pulley 60 Hz   (Replaces: 3394341)			Immediately	$ 46.15
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.50
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 126.24
33	693152		Bumper				$ 10.36
34	279731		4``-90° Elbow		Appelez-nous	-
35	W10470674		Plug-multivent   (Replaces: 697750)			Immediately	$ 80.59
36	W11089212		Washer   (Replaces: 3392186)				$ 9.95
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.45
38	8283298		Jumper, Door Switch				$ 79.13
40	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 59.19
42	WP98129		Screw, 6-20 X 1 1/16   (Replaces: 98129)				$ 7.36
43	3389233		Bushing		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 29.24
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.30
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.99
47	W10244331		Door, Rear   (Replaces: W10323063)		Appelez-nous	-
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 6.80
49	W10322548		Door, Front		Appelez-nous	-
51	W10242810		Upper Front Panel   (Replaces: W10192882)				$ 348.00
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	3400523		Screw, Security (includes Illus. 64 )		Appelez-nous	-
54	W10850046		Fastener   (Replaces: 9742177)			Immediately	$ 6.80
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
56	8529989		Harness (upper)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 123.42
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
59	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 31.29
60	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 77.79
61	WP3406797		Panel, Toe (includes Illus. 33)   (Replaces: 697215)				$ 225.23
62	3389351		Top (upper)		Appelez-nous	-
63	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
64	W10117347		Cotter Pin		Appelez-nous	-
65	W10466240		Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown)		Appelez-nous	-
66	279923		Valve, Gas (complete) 60 Hz   (Replaces: W10304604)			Immediately	$ 257.43
67	3387561		Clamp-pipe		Appelez-nous	-
68	WPW10366705		Screw, 8-32 X 7/8   (Replaces: 3393909)				$ 7.09
69	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
70	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 6.80
71	WP3393657		Restrain, Belt   (Replaces: 3393657)			Immediately	$ 125.17
72	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 55.21
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 80.59
NI	3396122		Window Pack. Includes Illus. 12 & 15		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
