SELECT A DIAGRAM

01 - Cover

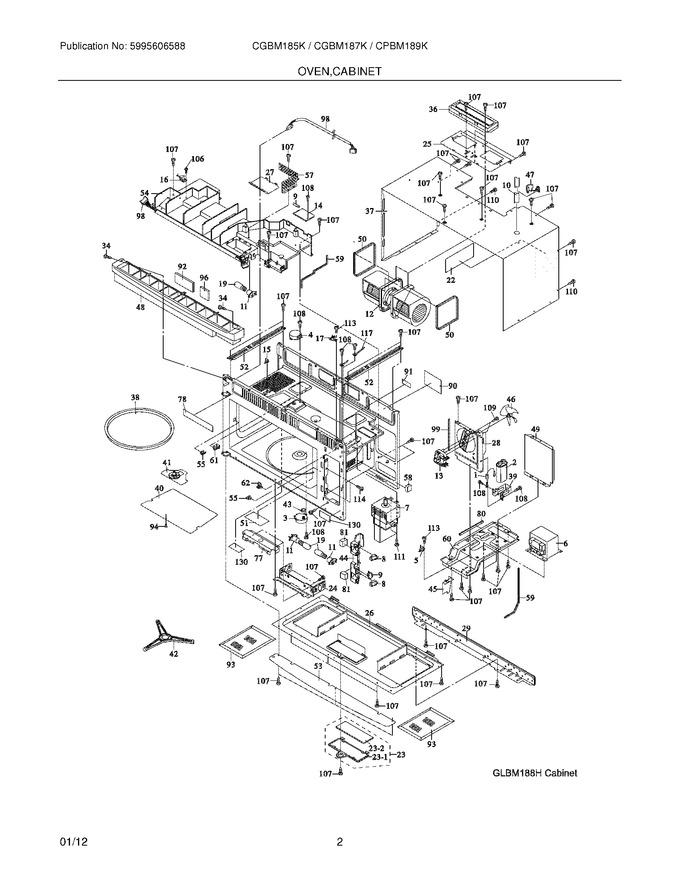

03 - Oven,cabinet


05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304440031		Lamp,incandescent ,20 W ,(3)			Immediately	$ 12.85
22	5304473105		Wiring Diagram,schematic ,label		Appelez-nous	-
23	5303319573		Lens/frame Assy,lamp ,black				$ 117.34
24	5304468909		Bracket,lamp Housing		Appelez-nous	-
25	5304481341		Plate,rear Stay				$ 43.26
26	5304481385		Cover,unit Base		Appelez-nous	-
27	5304468911		Cover,lamp ,oven Cavity				$ 43.45
28	5304467708		Duct,cooling Fan				$ 14.02
29	5304467709		Bracket,unit Mtg Plate ,rear				$ 50.66
34	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
36	5304481342		Damper Assembly,exhaust				$ 53.45
37	5304481352		Cabinet,outer Casing ,black				$ 175.92
38	5304537401		Tray,turntable ,glass   (Replaces: 5304441872)				$ 125.79
39	5304477240		Retainer,capacitor Strap		Appelez-nous	-
40	5304467715		Cover,stirrer Fan				$ 25.88
42	5304467717		Support Assy,turntable ,roller				$ 122.18
43	5304467718		Bushing,motor Shaft ,turntable				$ 19.14
44	5304440289		Latch Hook				$ 102.11
45	5304467719		Cover,wiring Harness		Appelez-nous	-
47	5304467721		Bushing,grommet ,power Cord				$ 11.08
49	5304467725		Duct,hood Intake ,right Side		Appelez-nous	-
50	5304467726		Gasket,hood Fan Motor ,cushion		Appelez-nous	-
51	5304467727		Lens,lamp Filter				$ 5.11
52	5304481343		Support,chassis				$ 40.78
53	5304477244		Deflector				$ 122.45
54	5304467732		Duct,exhaust Hood				$ 22.00
55	5304473092		Support,rack ,front				$ 19.74
57	5304467734		Barrier		Appelez-nous	-
58	5304467759		Cushion,transformer Pad		Appelez-nous	-
59	5304467760		Cushion,intake Duct ,seal		Appelez-nous	-
60	5304467761		Plate,base ,right		Appelez-nous	-
61	5304473093		Support,rack ,left Rear				$ 17.85
62	5304473094		Support,rack ,right Rear				$ 19.06
77	5304468919		Reflector,hood Lamp				$ 78.46
78	5304471813		Label,menu		Appelez-nous	-
80	5304467768		Cushion,base ,right Side ,seal		Appelez-nous	-
81	5304467769		Cushion,latch Hook ,pad				$ 9.45
90	5304468229		Label,ground-caution		Appelez-nous	-
91	5304472114		Label,caution-monitor		Appelez-nous	-
94	5304467773		Clip,canoe Type ,stirrer Cover				$ 55.67
99	5304467776		Cushion,fan Duct ,seal		Appelez-nous	-
106	5304467778		Screw,3 Mm X 8 Mm		Appelez-nous	-
107	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
107	5304467777		Screw,4 Mm X 8 Mm ,black				$ 16.30
108	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
109	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
110	5304451557		Screw,4 Mm X 12 Mm		Appelez-nous	-
111	5304467780		Screw,4 Mm X 8 Mm ,tap Tight				$ 13.46
113	5304467781		Screw,3 Mm X 6 Mm				$ 9.87
114	5303319641		Screw				$ 12.76
117	5304468921		Holder,wire		Appelez-nous	-
130	5304468226		Label,caution-dhhs				$ 3.15
F1	5304467670		Rectifier,high Voltage				$ 55.91
F10	5304440028		Power Cord,electric				$ 119.07
F11	5304463785		Lampholder,socket				$ 43.24
F12	5304467696		Motor,hood Fan				$ 224.01
F13	5304467697		Motor,cooling Fan				$ 75.23
F14	5304492543		Filter,noise ,electronic   (Replaces: 5304467698)				$ 81.18
F15	5304440032		Thermal Cutout,oven Cavity				$ 26.99
F16	5304463786		Sensor,humidity ,cook Control				$ 107.94
F17	5303319550		Fuse,magnetron				$ 117.23
F2	5304472108		Capacitor,high Voltage				$ 68.62
F23-	5303319574		Frame,lens Holder ,black				$ 60.17
F23-	5303319575		Lens,cooktop Lamp ,glass				$ 104.94
F3	5304473090		Motor,turntable				$ 38.38
F4	5304467691		Motor,stirrer Fan				$ 57.08
F41	5304475705		Stirrer Assembly				$ 65.63
F46	5304467720		Fan Blade,mag Cooling Fan				$ 17.64
F48	5304475574		Louver Assembly,hood ,gray/stainless				$ 195.77
F5	5304440023		Thermal Cutout,hood				$ 58.13
F6	5304468156		Transformer,power				$ 210.42
F7	5304472109		Magnetron				$ 189.10
F8	5304493153		Switch,interlock ,primary/door   (Replaces: 5304467694)			Immediately	$ 83.38
F9	5304471774		Switch,monitor ,w/ceramic Fuse				$ 41.74
F92	5304467772		Filter,inside Exhaust ,charcoal				$ 13.18
F93	5303319568		Filter-grease, (2)			Immediately	$ 37.52
F96	5304467774		Filter,air ,charcoal				$ 17.22
F98	5304467775		Wiring Harness,control-b				$ 49.83
NI	5304468230		Label,hwc Caution		Appelez-nous	-
