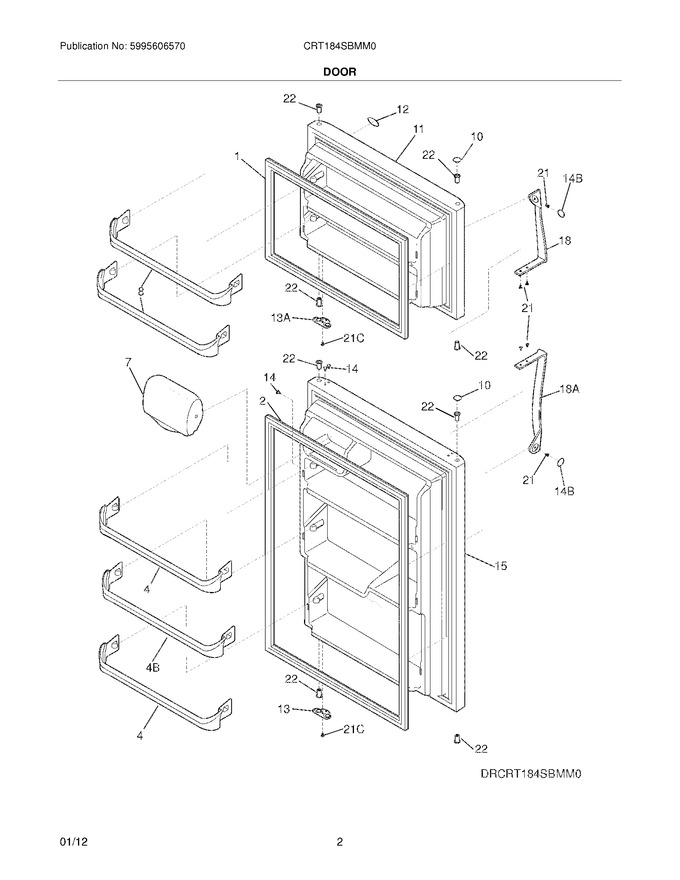

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381307 | Plug-button,silver Mist ,hinge Brg Hole (Replaces: 240381306) |
|
Immediately | $ 16.69 | ||||
| 11 | 240409920 | Door-frzr,silver Mist ,complete Assy |
|
$ 459.42 | |||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494006 | Plug-button,silver Mist |
|
$ 19.69 | |||||
| 15 | 240410136 | Door-refr,silver Mist ,complete Assy |
|
- | |||||
| 18 | 240339203 | Handle-door,black Refr-lh/frzr-rh |
|
$ 48.30 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 21.27 | |||||
| 14B | 240383603 | Plug-button,black ,door Handle |
|
$ 44.65 | |||||
| 18A | 240339208 | Handle-door,black Refr-rh/frzr-lh |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 28.80 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 164.15 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic |
|
Immediately | $ 165.39 |
