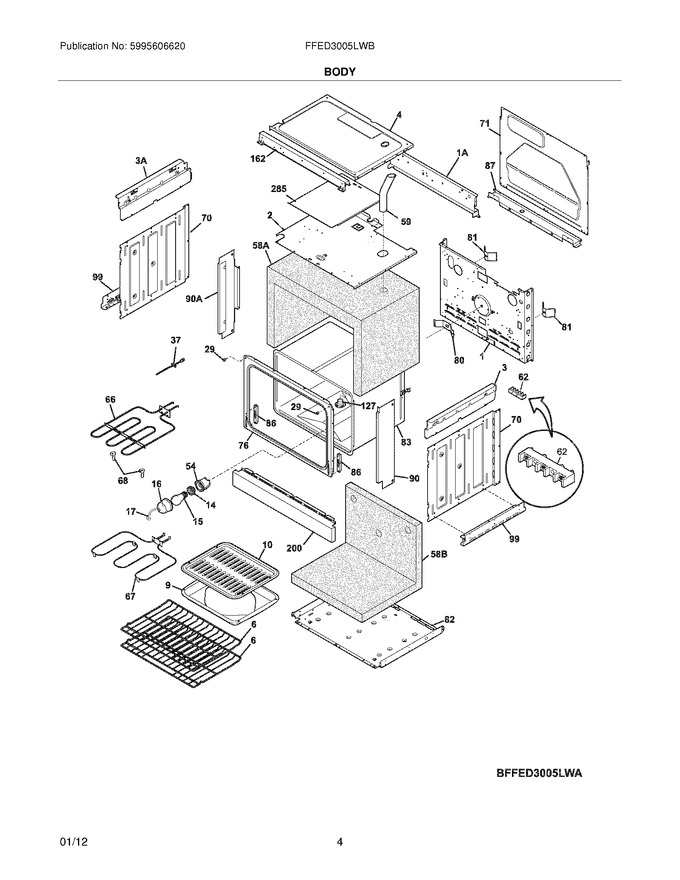

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
4	318073906		Panel,subtop		Appelez-nous	-
6	318345207		Rack,oven				$ 69.20
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
59	318549815		Tube,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056291		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261457		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318296922		Panel,filler ,white ,rh		Appelez-nous	-
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
127	318317000		Adapter,vent Tube				$ 19.16
162	318225810		Box,extension		Appelez-nous	-
200	318330001		Trim,door Opening ,white ,bottom				$ 232.84
285	318236201		Shield,hidden Wires		Appelez-nous	-
1A	318225120		Panel,main Back ,upper				$ 45.47
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	318285074		Insulation,oven Wrapper				$ 58.31
58B	318285075		Insulation,oven Back				$ 56.54
90A	318296923		Panel,filler ,white ,lh		Appelez-nous	-
F15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
F285	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255808		Element,broil ,3400w				$ 121.70
F67	318254919		Element,bake ,2750w		Appelez-nous	-
FNI	318224920		Harness,wiring ,main		Appelez-nous	-
FNI	318394445		Box & Wires Assy		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303325856		Kit,anti-tip		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
