SELECT A DIAGRAM

01 - Convection Oven Parts

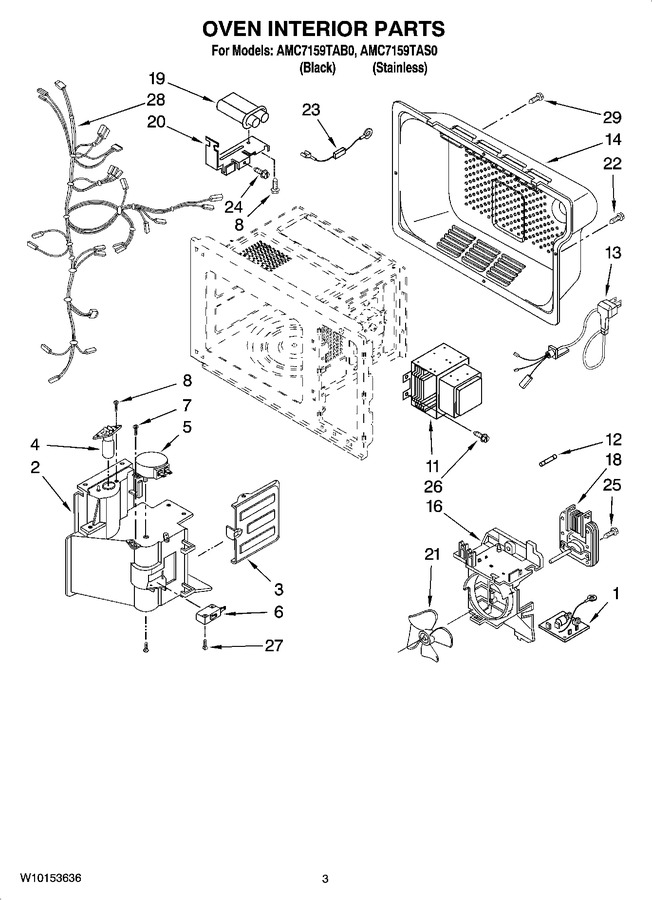

02 - Oven Interior Parts


03 - Oven Cavity Parts


04 - Base Plate Parts


05 - Latch Board Parts


06 - Control Panel Parts


07 - Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183771		Filter, Noise		Appelez-nous	-
2	8183563		Air Duct		Appelez-nous	-
3	8183573		Bracket, Damper		Appelez-nous	-
4	WP8183592		Lamp   (Replaces: 8183592)				$ 41.09
5	8183586		Motor, Stirrer		Appelez-nous	-
6	4392027		Switch, Micro   (Replaces: 4158940)				$ 138.41
7	4358188		Screw		Appelez-nous	-
8	4358381		Screw		Appelez-nous	-
11	W10859575		Magnetron   (Replaces: 53001581)				$ 361.62
12	WP8183507		Fuse   (Replaces: 8183507)				$ 18.33
13	8183584		Power Cord		Appelez-nous	-
14	8183569		Cover, Back		Appelez-nous	-
16	8183579		Guide, Suction		Appelez-nous	-
18	8183585		Motor, Fan		Appelez-nous	-
19	WP59001168		Capacitor, H.v.   (Replaces: 53001365)			Immediately	$ 208.35
20	4359161		Bracket, H.v.c.		Appelez-nous	-
21	4358379		Fan		Appelez-nous	-
22	4358192		Screw		Appelez-nous	-
23	WP8205489		Cable, Diode   (Replaces: 8171879)				$ 58.19
24	8184815		Screw		Appelez-nous	-
25	D505295		Screw   (Replaces: 4359792)				$ 1.47
26	4344826		Screw   (Replaces: 4358489)				$ 14.31
27	4358357		Screw		Appelez-nous	-
28	8206266		Harness, Main		Appelez-nous	-
29	8171862		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
